Supplement to Artificial Intelligence

Bayesian Nets

To explain Bayesian networks, and to provide a contrast between Bayesian probabilistic inference, and argument-based approaches that are likely to be attractive to classically trained philosophers, let us build upon the example of Black introduced above. Suppose that we want to compute the posterior probability of the guilt of our murder suspect, Mr. Black, from observed evidence. We have three Boolean variables in play: Guilty, Weapon, and Intuition. Weapon is true or false based on whether or not a murder weapon (the knife, recall) belonging to Black is found at the scene of the bloody crime. The variable Intuition is true provided that the very experienced detective in charge of the case, Holmes, has an intuition, without examining any physical evidence in the case, that Black is guilty; \(\lnot\)intuition holds just in case Holmes has no intuition either way. Here is a table that holds all the (eight) atomic events in the scenario so far:

weapon \(\lnot\)weapon
intuition \(\lnot\)intuition intuition \(\lnot\)intuition
guilty 0.208 0.016 0.072 0.008
\(\lnot\)guilty 0.013 0.063 0.134 0.486

Joint Distribution for \(\mathbf{P}(\Guilty,\Weapon,\Intuition)\)

Were we to add the aforeintroduced discrete random variable \(\PriceTChina\), we would of course have 40 events, corresponding in tabular form to the preceding table associated with each of the five possible values of \(\PriceTChina\). That is, there are 40 events in

\[ \P(\Guilty, \Weapon, \Intuition, \PriceTChina) \]

Bayesian networks provide a economical way to represent the situation. Such networks are directed, acyclic graphs in which nodes correspond to random variables. When there is a directed link from node \(N_i\) to node \(N_j\), we say that \(N_i\) is the parent of \(N_j\). With each node \(N_i\) there is a corresponding conditional probability distribution \[ P\left(N_i \ggiven Parents\left(N_i\right)\right) \]

where, of course, \(Parents(N_i)\) denotes the parents of \(N_i\). The following figure shows such a network for the case we have been considering. The specific probability information is omitted; readers should at this point be able to readily calculate it using the machinery provided above.

Bayesian net with: 'Guilty' to 'Weapon' and to 'Intuition'; separate 'PriceTChina'

A Simple Bayesian Net

Notice the economy of the network, in striking contrast to the prospect, visited above, of listing all 40 possibilities. The price of tea in China is presumed to have no connection to the murder, and hence the relevant node is isolated. In addition, only some probability information is included, corresponding to the relevant tables shown in the figure (typically termed a conditional probability table). And yet from a Bayesian network, every entry in the full joint distribution can be easily calculated, as follows. First, for each node/variable \(N_i\) we write \(N_i = n_i\) to indicate an assignment to that node/variable. The conjunction of the specific assignments to every variable in the full joint probability distribution can then be written as

\[ P\left(N_1=n_1 \land \ldots \land N_n=n_n\right) \]

and abbreviated as \(P(n_1, \ldots, n_n)\). Where \(parents(N_i)\) denotes the specific assignments to the variables in the set of all parents of \(N_i\), we can use a Bayesian net to produce the value of any entry via this equation:

\[ \prod_{i=1}^{n} P\left(n_i \ggiven parents(N_i)\right) \]

In our murder example above, assume we want to compute \(P\left(guilty, \lnot weapon, \lnot intuition, PriceTChina =5\right)\). We would use the following equation to do so.

\[\begin{align*} P\Big(guilty, &\lnot weapon, \lnot intuition, PriceTChina =5\Big) = \\ &P\left(guilty\right) P\left(\lnot weapon \ggiven guilty \right) \times \\ &P\left(\lnot intuition \ggiven guilty \right) \times \\ &P\left(PriceTChina =5\right) \end{align*}\]

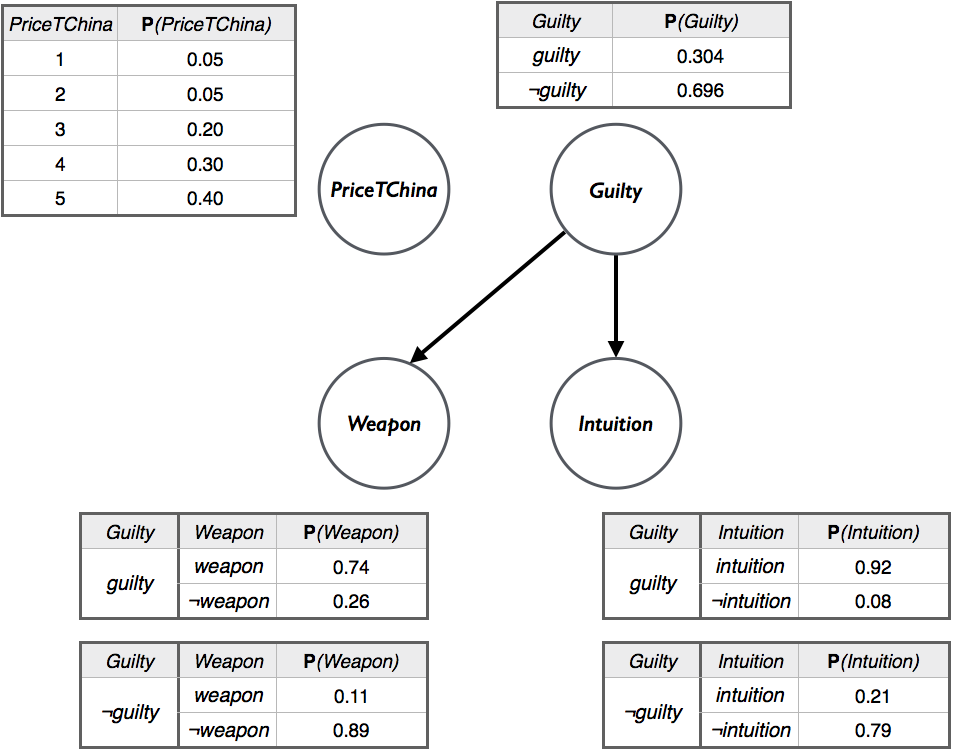

The Bayes net for the problem is shown fleshed out below. The values in the Bayes net below were computed using the table for the joint distribution of \(\mathbf{P}(\Guilty,\Weapon,\Intuition)\) given above.[B1]

Same network as above with conditional probability tables

Bayesian Net for the Murder Example

Plugging in the values from the Bayes net into the equation gives us:

\[\begin{aligned} &P\Big(guilty, \lnot weapon, \lnot intuition, PriceTChina =5\Big) \\ &\qquad\qquad= 0.304 \times 0.26 \times 0.08 \times 0.40\\ &\qquad\qquad= 0.0025 \end{aligned}\]

Earlier, we observed that the full joint distribution can be used to infer an answer to queries about the domain. Given this, it follows immediately that Bayesian networks have the same power. But in addition, there are much more efficient methods over such networks for answering queries. These methods, and increasing the expressivity of networks toward the first-order case, are outside the scope of the present entry. Readers are directed to AIMA, or any of the other textbooks affirmed in this entry.[B2]
