Analogy and Analogical Reasoning
An analogy is a comparison between two objects, or systems of objects, that highlights respects in which they are thought to be similar. Analogical reasoning is any type of thinking that relies upon an analogy. An analogical argument is an explicit representation of a form of analogical reasoning that cites accepted similarities between two systems to support the conclusion that some further similarity exists. In general (but not always), such arguments belong in the category of ampliative reasoning, since their conclusions do not follow with certainty but are only supported with varying degrees of strength. However, the proper characterization of analogical arguments is subject to debate (see §2.2).
Analogical reasoning is fundamental to human thought and, arguably, to some nonhuman animals as well. Historically, analogical reasoning has played an important, but sometimes mysterious, role in a wide range of problem-solving contexts. The explicit use of analogical arguments, since antiquity, has been a distinctive feature of scientific, philosophical and legal reasoning. This article focuses primarily on the nature, evaluation and justification of analogical arguments. Related topics include metaphor, models in science, and precedent and analogy in legal reasoning.
- 1. Introduction: the many roles of analogy
- 2. Analogical arguments
- 3. Criteria for evaluating analogical arguments
- 4. Philosophical foundations for analogical reasoning
- 5. Beyond analogical arguments
- Academic Tools
- Other Internet Resources
- Related Entries
Analogies are widely recognized as playing an important heuristic role, as aids to discovery. They have been employed, in a wide variety of settings and with considerable success, to generate insight and to formulate possible solutions to problems. According to Joseph Priestley, a pioneer in chemistry and electricity,
analogy is our best guide in all philosophical investigations; and all discoveries, which were not made by mere accident, have been made by the help of it. (1769/1966: 14)
Priestley may be over-stating the case, but there is no doubt that analogies have suggested fruitful lines of inquiry in many fields. Because of their heuristic value, analogies and analogical reasoning have been a particular focus of AI research. Hájek (2018) examines analogy as a heuristic tool in philosophy.
Analogies have a related (and not entirely separable) justificatory role. This role is most obvious where an analogical argument is explicitly offered in support of some conclusion. The intended degree of support for the conclusion can vary considerably. At one extreme, these arguments can be strongly predictive. For example (Example 1), hydrodynamic analogies exploit mathematical similarities between the equations governing ideal fluid flow and torsional problems. To predict stresses in a planned structure, one can construct a fluid model, i.e., a system of pipes through which water passes (Timoshenko and Goodier 1970). Within the limits of idealization, such analogies allow us to make demonstrative inferences, for example, from a measured quantity in the fluid model to the analogous value in the torsional problem. In practice, there are numerous complications (Sterrett 2006).
At the other extreme, an analogical argument may provide very weak support for its conclusion, establishing no more than minimal plausibility. Consider (Example 2) Thomas Reid’s (1785) argument for the existence of life on other planets (Stebbing 1933; Mill 1843/1930; Robinson 1930; Copi 1961). Reid notes a number of similarities between Earth and the other planets in our solar system: all orbit and are illuminated by the sun; several have moons; all revolve on an axis. In consequence, he concludes, it is “not unreasonable to think, that those planets may, like our earth, be the habitation of various orders of living creatures” (1785: 24).
Such modesty is not uncommon. Often the point of an analogical argument is just to persuade people to take an idea seriously. For instance (Example 3), Darwin takes himself to be using an analogy between artificial and natural selection to argue for the plausibility of the latter:
Why may I not invent the hypothesis of Natural Selection (which from the analogy of domestic productions, and from what we know of the struggle of existence and of the variability of organic beings, is, in some very slight degree, in itself probable) and try whether this hypothesis of Natural Selection does not explain (as I think it does) a large number of facts…. (Letter to Henslow, May 1860 in Darwin 1903)
Here it appears, by Darwin’s own admission, that his analogy is employed to show that the hypothesis is probable to some “slight degree” and thus merits further investigation. Some, however, reject this characterization of Darwin’s reasoning (Richards 1997; Gildenhuys 2004).
Sometimes analogical reasoning is the only available form of justification for a hypothesis. The method of ethnographic analogy is used to interpret
the nonobservable behaviour of the ancient inhabitants of an archaeological site (or ancient culture) based on the similarity of their artifacts to those used by living peoples. (Hunter and Whitten 1976: 147)
For example (Example 4), Shelley (1999, 2003) describes how ethnographic analogy was used to determine the probable significance of odd markings on the necks of Moche clay pots found in the Peruvian Andes. Contemporary potters in Peru use these marks (called sígnales) to indicate ownership; the marks enable them to reclaim their work when several potters share a kiln or storage facility. Analogical reasoning may be the only avenue of inference to the past in such cases, though this point is subject to dispute (Gould and Watson 1982; Wylie 1982, 1985). Analogical reasoning may have similar significance for cosmological phenomena that are inaccessible due to limits on observation (Dardashti et al. 2017). See §5.1 for further discussion.
As philosophers and historians such as Kuhn (1996) have repeatedly pointed out, there is not always a clear separation between the two roles that we have identified, discovery and justification. Indeed, the two functions are blended in what we might call the programmatic (or paradigmatic) role of analogy: over a period of time, an analogy can shape the development of a program of research. For example (Example 5), an ‘acoustical analogy’ was employed for many years by certain nineteenth-century physicists investigating spectral lines. Discrete spectra were thought to be
completely analogous to the acoustical situation, with atoms (and/or molecules) serving as oscillators originating or absorbing the vibrations in the manner of resonant tuning forks. (Maier 1981: 51)
Guided by this analogy, physicists looked for groups of spectral lines that exhibited frequency patterns characteristic of a harmonic oscillator. This analogy served not only to underwrite the plausibility of conjectures, but also to guide and limit discovery by pointing scientists in certain directions.
More generally, analogies can play an important programmatic role by guiding conceptual development (see §5.2). In some cases, a programmatic analogy culminates in the theoretical unification of two different areas of inquiry. Descartes’s (1637/1954) correlation between geometry and algebra, for example (Example 6), provided methods for systematically handling geometrical problems that had long been recognized as analogous. A very different relationship between analogy and discovery exists when a programmatic analogy breaks down, as was the ultimate fate of the acoustical analogy. That atomic spectra have an entirely different explanation became clear with the advent of quantum theory. In this case, novel discoveries emerged against background expectations shaped by the guiding analogy. There is a third possibility: an unproductive or misleading programmatic analogy may simply become entrenched and self-perpetuating as it leads us to “construct… data that conform to it” (Stepan 1996: 133). Arguably, the danger of this third possibility provides strong motivation for developing a critical account of analogical reasoning and analogical arguments.
Analogical cognition, which embraces all cognitive processes involved in discovering, constructing and using analogies, is broader than analogical reasoning (Hofstadter 2001; Hofstadter and Sander 2013). Understanding these processes is an important objective of current cognitive science research, and an objective that generates many questions. How do humans identify analogies? Do nonhuman animals use analogies in ways similar to humans? How do analogies and metaphors influence concept formation?
This entry, however, concentrates specifically on analogical arguments. Specifically, it focuses on three central epistemological questions:
- What criteria should we use to evaluate analogical arguments?
- What philosophical justification can be provided for analogical inferences?
- How do analogical arguments fit into a broader inferential context (i.e., how do we combine them with other forms of inference), especially theoretical confirmation?
Following a preliminary discussion of the basic structure of analogical arguments, the entry reviews selected attempts to provide answers to these three questions. To find such answers would constitute an important first step towards understanding the nature of analogical reasoning. To isolate these questions, however, is to make the non-trivial assumption that there can be a theory of analogical arguments—an assumption which, as we shall see, is attacked in different ways by both philosophers and cognitive scientists.
Analogical arguments vary greatly in subject matter, strength and logical structure. In order to appreciate this variety, it is helpful to increase our stock of examples. First, a geometric example:
Example 7 (Rectangles and boxes). Suppose that you have established that of all rectangles with a fixed perimeter, the square has maximum area. By analogy, you conjecture that of all boxes with a fixed surface area, the cube has maximum volume.
Two examples from the history of science:
Example 8 (Morphine and meperidine). In 1934, the pharmacologist Schaumann was testing synthetic compounds for their anti-spasmodic effect. These drugs had a chemical structure similar to morphine. He observed that one of the compounds—meperidine, also known as Demerol—had a physical effect on mice that was previously observed only with morphine: it induced an S-shaped tail curvature. By analogy, he conjectured that the drug might also share morphine’s narcotic effects. Testing on rats, rabbits, dogs and eventually humans showed that meperidine, like morphine, was an effective pain-killer (Lembeck 1989: 11; Reynolds and Randall 1975: 273).
Example 9 (Priestley on electrostatic force). In 1769, Priestley suggested that the absence of electrical influence inside a hollow charged spherical shell was evidence that charges attract and repel with an inverse square force. He supported his hypothesis by appealing to the analogous situation of zero gravitational force inside a hollow shell of uniform density.
Finally, an example from legal reasoning:
Example 10 (Duty of reasonable care). In a much-cited case (Donoghue v. Stevenson 1932 AC 562), the United Kingdom House of Lords found the manufacturer of a bottle of ginger beer liable for damages to a consumer who became ill as a result of a dead snail in the bottle. The court argued that the manufacturer had a duty to take “reasonable care” in creating a product that could foreseeably result in harm to the consumer in the absence of such care, and where the consumer had no possibility of intermediate examination. The principle articulated in this famous case was extended, by analogy, to allow recovery for harm against an engineering firm whose negligent repair work caused the collapse of a lift (Haseldine v. CA Daw & Son Ltd. 1941 2 KB 343). By contrast, the principle was not applicable to a case where a workman was injured by a defective crane, since the workman had opportunity to examine the crane and was even aware of the defects (Farr v. Butters Brothers & Co. 1932 2 KB 606).
What, if anything, do all of these examples have in common? We begin with a simple, quasi-formal characterization. Similar formulations are found in elementary critical thinking texts (e.g., Copi and Cohen 2005) and in the literature on argumentation theory (e.g., Govier 1999, Guarini 2004, Walton and Hyra 2018). An analogical argument has the following form:
- S is similar to T in certain (known) respects.
- S has some further feature Q.
- Therefore, T also has the feature Q, or some feature Q* similar to Q.
(1) and (2) are premises. (3) is the conclusion of the argument. The argument form is ampliative; the conclusion is not guaranteed to follow from the premises.
S and T are referred to as the source domain and target domain, respectively. A domain is a set of objects, properties, relations and functions, together with a set of accepted statements about those objects, properties, relations and functions. More formally, a domain consists of a set of objects and an interpreted set of statements about them. The statements need not belong to a first-order language, but to keep things simple, any formalizations employed here will be first-order. We use unstarred symbols (a, P, R, f) to refer to items in the source domain and starred symbols (a*, P*, R*, f*) to refer to corresponding items in the target domain. In Example 9, the source domain items pertain to gravitation; the target items pertain to electrostatic attraction.
Formally, an analogy between S and T is a one-to-one mapping between objects, properties, relations and functions in S and those in T. Not all of the items in S and T need to be placed in correspondence. Commonly, the analogy only identifies correspondences between a select set of items. In practice, we specify an analogy simply by indicating the most significant similarities (and sometimes differences).
We can improve on this preliminary characterization of the argument from analogy by introducing the tabular representation found in Hesse (1966). We place corresponding objects, properties, relations and propositions side-by-side in a table of two columns, one for each domain. For instance, Reid’s argument (Example 2) can be represented as follows (using ⇒ for the analogical inference):
|Earth (S)||Mars (T)|
|← vertical →||Known similarities:|
|orbits the sun||← horizontal →||orbits the sun|
|has a moon||has moons|
|revolves on axis||revolves on axis|
|subject to gravity||subject to gravity|
|supports life||⇒||may support life|
Hesse introduced useful terminology based on this tabular representation. The horizontal relations in an analogy are the relations of similarity (and difference) in the mapping between domains, while the vertical relations are those between the objects, relations and properties within each domain. The correspondence (similarity) between earth’s having a moon and Mars’ having moons is a horizontal relation; the causal relation between having a moon and supporting life is a vertical relation within the source domain (with the possibility of a distinct such relation existing in the target as well).
In an earlier discussion of analogy, Keynes (1921) introduced some terminology that is also helpful.
Let P stand for a list of accepted propositions P1, …, Pn about the source domain S. Suppose that the corresponding propositions P*1, …, P*n, abbreviated as P*, are all accepted as holding for the target domain T, so that P and P* represent accepted (or known) similarities. Then we refer to P as the positive analogy.
Let A stand for a list of propositions A1, …, Ar accepted as holding in S, and B* for a list B1*, …, Bs* of propositions holding in T. Suppose that the analogous propositions A* = A1*, …, Ar* fail to hold in T, and similarly the propositions B = B1, …, Bs fail to hold in S, so that A, ~A* and ~B, B* represent accepted (or known) differences. Then we refer to A and B as the negative analogy.
The neutral analogy consists of accepted propositions about S for which it is not known whether an analogue holds in T.
Finally we have:
The hypothetical analogy is simply the proposition Q in the neutral analogy that is the focus of our attention.
These concepts allow us to provide a characterization for an individual analogical argument that is somewhat richer than the original one.
|(4)||Augmented tabular representation|
An analogical argument may thus be summarized:
It is plausible that Q* holds in the target, because of certain known (or accepted) similarities with the source domain, despite certain known (or accepted) differences.
In order for this characterization to be meaningful, we need to say something about the meaning of ‘plausibly.’ To ensure broad applicability over analogical arguments that vary greatly in strength, we interpret plausibility rather liberally as meaning ‘with some degree of support’. In general, judgments of plausibility are made after a claim has been formulated, but prior to rigorous testing or proof. The next sub-section provides further discussion.
Note that this characterization is incomplete in a number of ways. The manner in which we list similarities and differences, the nature of the correspondences between domains: these things are left unspecified. Nor does this characterization accommodate reasoning with multiple analogies (i.e., multiple source domains), which is ubiquitous in legal reasoning and common elsewhere. To characterize the argument form more fully, however, is not possible without either taking a step towards a substantive theory of analogical reasoning or restricting attention to certain classes of analogical arguments.
Arguments by analogy are extensively discussed within argumentation theory. There is considerable debate about whether they constitute a species of deductive inference (Govier 1999; Waller 2001; Guarini 2004; Kraus 2015). Argumentation theorists also make use of tools such as speech act theory (Bermejo-Luque 2012), argumentation schemes and dialogue types (Macagno et al. 2017; Walton and Hyra 2018) to distinguish different types of analogical argument.
Arguments by analogy are also discussed in the vast literature on scientific models and model-based reasoning, following the lead of Hesse (1966). Bailer-Jones (2002) draws a helpful distinction between analogies and models. While “many models have their roots in an analogy” (2002: 113) and analogy “can act as a catalyst to aid modeling,” Bailer-Jones observes that “the aim of modeling has nothing intrinsically to do with analogy.” In brief, models are tools for prediction and explanation, whereas analogical arguments aim at establishing plausibility. An analogy is evaluated in terms of source-target similarity, while a model is evaluated on how successfully it “provides access to a phenomenon in that it interprets the available empirical data about the phenomenon.” If we broaden our perspective beyond analogical arguments, however, the connection between models and analogies is restored. Nersessian (2009), for instance, stresses the role of analog models in concept-formation and other cognitive processes.
To say that a hypothesis is plausible is to convey that it has epistemic support: we have some reason to believe it, even prior to testing. An assertion of plausibility within the context of an inquiry typically has pragmatic connotations as well: to say that a hypothesis is plausible suggests that we have some reason to investigate it further. For example, a mathematician working on a proof regards a conjecture as plausible if it “has some chances of success” (Polya 1954 (v. 2): 148). On both points, there is ambiguity as to whether an assertion of plausibility is categorical or a matter of degree. These observations point to the existence of two distinct conceptions of plausibility, probabilistic and modal, either of which may reflect the intended conclusion of an analogical argument.
On the probabilistic conception, plausibility is naturally identified with rational credence (rational subjective degree of belief) and is typically represented as a probability. A classic expression may be found in Mill’s analysis of the argument from analogy in A System of Logic:
There can be no doubt that every resemblance [not known to be irrelevant] affords some degree of probability, beyond what would otherwise exist, in favour of the conclusion. (Mill 1843/1930: 333)
In the terminology introduced in §2.2, Mill’s idea is that each element of the positive analogy boosts the probability of the conclusion. Contemporary ‘structure-mapping’ theories (§3.4) employ a restricted version: each structural similarity between two domains contributes to the overall measure of similarity, and hence to the strength of the analogical argument.
On the alternative modal conception, ‘it is plausible that p’ is not a matter of degree. The meaning, roughly speaking, is that there are sufficient initial grounds for taking p seriously, i.e., for further investigation (subject to feasibility and interest). Informally: p passes an initial screening procedure. There is no assertion of degree. Instead, ‘It is plausible that’ may be regarded as an epistemic modal operator that aims to capture a notion, prima facie plausibility, that is somewhat stronger than ordinary epistemic possibility. The intent is to single out p from an undifferentiated mass of ideas that remain bare epistemic possibilities. To illustrate: in 1769, Priestley’s argument (Example 9), if successful, would establish the prima facie plausibility of an inverse square law for electrostatic attraction. The set of epistemic possibilities—hypotheses about electrostatic attraction compatible with knowledge of the day—was much larger. Individual analogical arguments in mathematics (such as Example 7) are almost invariably directed towards prima facie plausibility.
The modal conception figures importantly in some discussions of analogical reasoning. The physicist N. R. Campbell (1957) writes:
But in order that a theory may be valuable it must … display an analogy. The propositions of the hypothesis must be analogous to some known laws…. (1957: 129)
Commenting on the role of analogy in Fourier’s theory of heat conduction, Campbell writes:
Some analogy is essential to it; for it is only this analogy which distinguishes the theory from the multitude of others… which might also be proposed to explain the same laws. (1957: 142)
The interesting notion here is that of a “valuable” theory. We may not agree with Campbell that the existence of analogy is “essential” for a novel theory to be “valuable.” But consider the weaker thesis that an acceptable analogy is sufficient to establish that a theory is “valuable”, or (to qualify still further) that an acceptable analogy provides defeasible grounds for taking the theory seriously. (Possible defeaters might include internal inconsistency, inconsistency with accepted theory, or the existence of a (clearly superior) rival analogical argument.) The point is that Campbell, following the lead of 19th century philosopher-scientists such as Herschel and Whewell, thinks that analogies can establish this sort of prima facie plausibility. Snyder (2006) provides a detailed discussion of the latter two thinkers and their ideas about the role of analogies in science.
In general, analogical arguments may be directed at establishing either sort of plausibility for their conclusions; they can have a probabilistic use or a modal use. Examples 7 through 9 are best interpreted as supporting modal conclusions. In those arguments, an analogy is used to show that a conjecture is worth taking seriously. To insist on putting the conclusion in probabilistic terms distracts attention from the point of the argument. The conclusion might be modeled (by a Bayesian) as having a certain probability value because it is deemed prima facie plausible, but not vice versa. Example 2, perhaps, might be regarded as directed primarily towards a probabilistic conclusion.
There should be connections between the two conceptions. Indeed, we might think that the same analogical argument can establish both prima facie plausibility and a degree of probability for a hypothesis. But it is difficult to translate between epistemic modal concepts and probabilities (Cohen 1980; Douven and Williamson 2006; Huber 2009; Spohn 2009, 2012). We cannot simply take the probabilistic notion as the primitive one. It seems wise to keep the two conceptions of plausibility separate.
Schema (4) is a template that represents all analogical arguments, good and bad. It is not an inference rule. Despite the confidence with which particular analogical arguments are advanced, nobody has ever formulated an acceptable rule, or set of rules, for valid analogical inferences. There is not even a plausible candidate. This situation is in marked contrast not only with deductive reasoning, but also with elementary forms of inductive reasoning, such as induction by enumeration.
Of course, it is difficult to show that no successful analogical inference rule will ever be proposed. But consider the following candidate, formulated using the concepts of schema (4) and taking us only a short step beyond that basic characterization.
- (5) Suppose S and T are the source and target domains. Suppose P1, …, Pn (with n ≥ 1) represents the positive analogy, A1, …, Ar and ~B1, …, ~Bs represent the (possibly vacuous) negative analogy, and Q represents the hypothetical analogy. In the absence of reasons for thinking otherwise, infer that Q* holds in the target domain with degree of support p > 0, where p is an increasing function of n and a decreasing function of r and s.
Rule (5) is modeled on the straight rule for enumerative induction and inspired by Mill’s view of analogical inference, as described in §2.3. We use the generic phrase ‘degree of support’ in place of probability, since other factors besides the analogical argument may influence our probability assignment for Q*.
It is pretty clear that (5) is a non-starter. The main problem is that the rule justifies too much. The only substantive requirement introduced by (5) is that there be a nonempty positive analogy. Plainly, there are analogical arguments that satisfy this condition but establish no prima facie plausibility and no measure of support for their conclusions.
Here is a simple illustration. Achinstein (1964: 328) observes that there is a formal analogy between swans and line segments if we take the relation ‘has the same color as’ to correspond to ‘is congruent with’. Both relations are reflexive, symmetric, and transitive. Yet it would be absurd to find positive support from this analogy for the idea that we are likely to find congruent lines clustered in groups of two or more, just because swans of the same color are commonly found in groups. The positive analogy is antecedently known to be irrelevant to the hypothetical analogy. In such a case, the analogical inference should be utterly rejected. Yet rule (5) would wrongly assign non-zero degree of support.
To generalize the difficulty: not every similarity increases the probability of the conclusion and not every difference decreases it. Some similarities and differences are known to be (or accepted as being) utterly irrelevant and should have no influence whatsoever on our probability judgments. To be viable, rule (5) would need to be supplemented with considerations of relevance, which depend upon the subject matter, historical context and logical details particular to each analogical argument. To search for a simple rule of analogical inference thus appears futile.
Carnap and his followers (Carnap 1980; Kuipers 1988; Niiniluoto 1988; Maher 2000; Romeijn 2006) have formulated principles of analogy for inductive logic, using Carnapian λγ rules. Generally, this body of work relates to “analogy by similarity”, rather than the type of analogical reasoning discussed here. Romeijn (2006) maintains that there is a relation between Carnap’s concept of analogy and analogical prediction. His approach is a hybrid of Carnap-style inductive rules and a Bayesian model. Such an approach would need to be generalized to handle the kinds of arguments described in §2.1. It remains unclear that the Carnapian approach can provide a general rule for analogical inference.
Norton (2010, and 2018—see Other Internet Resources) has argued that the project of formalizing inductive reasoning in terms of one or more simple formal schemata is doomed. His criticisms seem especially apt when applied to analogical reasoning. He writes:
If analogical reasoning is required to conform only to a simple formal schema, the restriction is too permissive. Inferences are authorized that clearly should not pass muster… The natural response has been to develop more elaborate formal templates… The familiar difficulty is that these embellished schema never seem to be quite embellished enough; there always seems to be some part of the analysis that must be handled intuitively without guidance from strict formal rules. (2018: 1)
Norton takes the point one step further, in keeping with his “material theory” of inductive inference. He argues that there is no universal logical principle that “powers” analogical inference “by asserting that things that share some properties must share others.” Rather, each analogical inference is warranted by some local constellation of facts about the target system that he terms “the fact of analogy”. These local facts are to be determined and investigated on a case by case basis.
To embrace a purely formal approach to analogy and to abjure formalization entirely are two extremes in a spectrum of strategies. There are intermediate positions. Most recent analyses (both philosophical and computational) have been directed towards elucidating criteria and procedures, rather than formal rules, for reasoning by analogy. So long as these are not intended to provide a universal ‘logic’ of analogy, there is room for such criteria even if one accepts Norton’s basic point. The next section discusses some of these criteria and procedures.
Logicians and philosophers of science have identified ‘textbook-style’ general guidelines for evaluating analogical arguments (Mill 1843/1930; Keynes 1921; Robinson 1930; Stebbing 1933; Copi and Cohen 2005; Moore and Parker 1998; Woods, Irvine, and Walton 2004). Here are some of the most important ones:
- (G1) The more similarities (between two domains), the stronger the analogy.
- (G2) The more differences, the weaker the analogy.
- (G3) The greater the extent of our ignorance about the two domains, the weaker the analogy.
- (G4) The weaker the conclusion, the more plausible the analogy.
- (G5) Analogies involving causal relations are more plausible than those not involving causal relations.
- (G6) Structural analogies are stronger than those based on superficial similarities.
- (G7) The relevance of the similarities and differences to the conclusion (i.e., to the hypothetical analogy) must be taken into account.
- (G8) Multiple analogies supporting the same conclusion make the argument stronger.
These principles can be helpful, but are frequently too vague to provide much insight. How do we count similarities and differences in applying (G1) and (G2)? Why are the structural and causal analogies mentioned in (G5) and (G6) especially important, and which structural and causal features merit attention? More generally, in connection with the all-important (G7): how do we determine which similarities and differences are relevant to the conclusion? Furthermore, what are we to say about similarities and differences that have been omitted from an analogical argument but might still be relevant?
An additional problem is that the criteria can pull in different directions. To illustrate, consider Reid’s argument for life on other planets (Example 2). Stebbing (1933) finds Reid’s argument “suggestive” and “not unplausible” because the conclusion is weak (G4), while Mill (1843/1930) appears to reject the argument on account of our vast ignorance of properties that might be relevant (G3).
There is a further problem that relates to the distinction just made (in §2.3) between two kinds of plausibility. Each of the above criteria apart from (G7) is expressed in terms of the strength of the argument, i.e., the degree of support for the conclusion. The criteria thus appear to presuppose the probabilistic interpretation of plausibility. The problem is that a great many analogical arguments aim to establish prima facie plausibility rather than any degree of probability. Most of the guidelines are not directly applicable to such arguments.
Aristotle sets the stage for all later theories of analogical reasoning. In his theoretical reflections on analogy and in his most judicious examples, we find a sober account that lays the foundation both for the commonsense guidelines noted above and for more sophisticated analyses.
Although Aristotle employs the term analogy (analogia) and discusses analogical predication, he never talks about analogical reasoning or analogical arguments per se. He does, however, identify two argument forms, the argument from example (paradeigma) and the argument from likeness (homoiotes), both closely related to what would we now recognize as an analogical argument.
The argument from example (paradeigma) is described in the Rhetoric and the Prior Analytics:
Enthymemes based upon example are those which proceed from one or more similar cases, arrive at a general proposition, and then argue deductively to a particular inference. (Rhetoric 1402b15)
Let A be evil, B making war against neighbours, C Athenians against Thebans, D Thebans against Phocians. If then we wish to prove that to fight with the Thebans is an evil, we must assume that to fight against neighbours is an evil. Conviction of this is obtained from similar cases, e.g., that the war against the Phocians was an evil to the Thebans. Since then to fight against neighbours is an evil, and to fight against the Thebans is to fight against neighbours, it is clear that to fight against the Thebans is an evil. (Pr. An. 69a1)
Aristotle notes two differences between this argument form and induction (69a15ff.): it “does not draw its proof from all the particular cases” (i.e., it is not a “complete” induction), and it requires an additional (deductively valid) syllogism as the final step. The argument from example thus amounts to single-case induction followed by deductive inference. It has the following structure (using ⊃ for the conditional):
In the terminology of §2.2, P is the positive analogy and Q is the hypothetical analogy. In Aristotle’s example, S (the source) is war between Phocians and Thebans, T (the target) is war between Athenians and Thebans, P is war between neighbours, and Q is evil. The first inference (dashed arrow) is inductive; the second and third (solid arrows) are deductively valid.

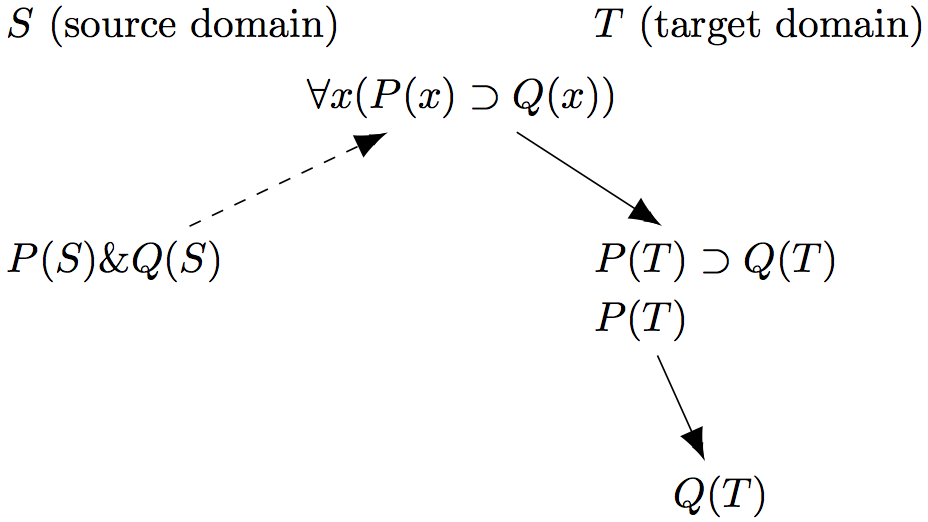

The paradeigma has an interesting feature: it is amenable to an alternative analysis as a purely deductive argument form. Let us concentrate on Aristotle’s assertion, “we must assume that to fight against neighbours is an evil,” represented as ∀x(P(x) ⊃ Q(x)). Instead of regarding this intermediate step as something reached by induction from a single case, we might instead regard it as a hidden presupposition. This transforms the paradeigma into a syllogistic argument with a missing or enthymematic premise, and our attention shifts to possible means for establishing that premise (with single-case induction as one such means). Construed in this way, Aristotle’s paradeigma argument foreshadows deductive analyses of analogical reasoning (see §4.1).
The argument from likeness (homoiotes) seems to be closer than the paradeigma to our contemporary understanding of analogical arguments. This argument form receives considerable attention in Topics I, 17 and 18 and again in VIII, 1. The most important passage is the following.
Try to secure admissions by means of likeness; for such admissions are plausible, and the universal involved is less patent; e.g. that as knowledge and ignorance of contraries is the same, so too perception of contraries is the same; or vice versa, that since the perception is the same, so is the knowledge also. This argument resembles induction, but is not the same thing; for in induction it is the universal whose admission is secured from the particulars, whereas in arguments from likeness, what is secured is not the universal under which all the like cases fall. (Topics 156b10–17)
This passage occurs in a work that offers advice for framing dialectical arguments when confronting a somewhat skeptical interlocutor. In such situations, it is best not to make one’s argument depend upon securing agreement about any universal proposition. The argument from likeness is thus clearly distinct from the paradeigma, where the universal proposition plays an essential role as an intermediate step in the argument. The argument from likeness, though logically less straightforward than the paradeigma, is exactly the sort of analogical reasoning we want when we are unsure about underlying generalizations.
In Topics I 17, Aristotle states that any shared attribute contributes some degree of likeness. It is natural to ask when the degree of likeness between two things is sufficiently great to warrant inferring a further likeness. In other words, when does the argument from likeness succeed? Aristotle does not answer explicitly, but a clue is provided by the way he justifies particular arguments from likeness. As Lloyd (1966) has observed, Aristotle typically justifies such arguments by articulating a (sometimes vague) causal principle which governs the two phenomena being compared. For example, Aristotle explains the saltiness of the sea, by analogy with the saltiness of sweat, as a kind of residual earthy stuff exuded in natural processes such as heating. The common principle is this:
Everything that grows and is naturally generated always leaves a residue, like that of things burnt, consisting in this sort of earth. (Mete 358a17)
From this method of justification, we might conjecture that Aristotle believes that the important similarities are those that enter into such general causal principles.
Summarizing, Aristotle’s theory provides us with four important and influential criteria for the evaluation of analogical arguments:
- The strength of an analogy depends upon the number of similarities.
- Similarity reduces to identical properties and relations.
- Good analogies derive from underlying common causes or general laws.
- A good analogical argument need not pre-suppose acquaintance with the underlying universal (generalization).
These four principles form the core of a common-sense model for evaluating analogical arguments (which is not to say that they are correct; indeed, the first three will shortly be called into question). The first, as we have seen, appears regularly in textbook discussions of analogy. The second is largely taken for granted, with important exceptions in computational models of analogy (§3.4). Versions of the third are found in most sophisticated theories. The final point, which distinguishes the argument from likeness and the argument from example, is endorsed in many discussions of analogy (e.g., Quine and Ullian 1970).
A slight generalization of Aristotle’s first principle helps to prepare the way for discussion of later developments. As that principle suggests, Aristotle, in common with just about everyone else who has written about analogical reasoning, organizes his analysis of the argument form around overall similarity. In the terminology of section 2.2, horizontal relationships drive the reasoning: the greater the overall similarity of the two domains, the stronger the analogical argument. Hume makes the same point, though stated negatively, in his Dialogues Concerning Natural Religion:
Wherever you depart, in the least, from the similarity of the cases, you diminish proportionably the evidence; and may at last bring it to a very weak analogy, which is confessedly liable to error and uncertainty. (1779/1947: 144)
Most theories of analogy agree with Aristotle and Hume on this general point. Disagreement relates to the appropriate way of measuring overall similarity. Some theories assign greatest weight to material analogy, which refers to shared, and typically observable, features. Others give prominence to formal analogy, emphasizing high-level structural correspondence. The next two sub-sections discuss representative accounts that illustrate these two approaches.
Hesse (1966) offers a sharpened version of Aristotle’s theory, specifically focused on analogical arguments in the sciences. She formulates three requirements that an analogical argument must satisfy in order to be acceptable:
- Requirement of material analogy. The horizontal relations must include similarities between observable properties.
- Causal condition. The vertical relations must be causal relations “in some acceptable scientific sense” (1966: 87).
- No-essential-difference condition. The essential properties and causal relations of the source domain must not have been shown to be part of the negative analogy.
3.3.1 Requirement of material analogy
For Hesse, an acceptable analogical argument must include “observable similarities” between domains, which she refers to as material analogy. Material analogy is contrasted with formal analogy. Two domains are formally analogous if both are “interpretations of the same formal theory” (1966: 68). Nomic isomorphism (Hempel 1965) is a special case in which the physical laws governing two systems have identical mathematical form. Heat and fluid flow exhibit nomic isomorphism. A second example is the analogy between the flow of electric current in a wire and fluid in a pipe. Ohm’s law
- (6) Δv = iR
states that voltage difference along a wire equals current times a constant resistance. This has the same mathematical form as Poiseuille’s law (for ideal fluids):
- (7) Δp = V̇k
which states that the pressure difference along a pipe equals the volumetric flow rate times a constant. Both of these systems can be represented by a common equation. While formal analogy is linked to common mathematical structure, it should not be limited to nomic isomorphism (Bartha 2010: 209). The idea of formal analogy generalizes to cases where there is a common mathematical structure between models for two systems. Bartha offers an even more liberal definition (2010: 195): “Two features are formally similar if they occupy corresponding positions in formally analogous theories. For example, pitch in the theory of sound corresponds to color in the theory of light.”
By contrast, material analogy consists of what Hesse calls “observable” or “pre-theoretic” similarities. These are horizontal relationships of similarity between properties of objects in the source and the target. Similarities between echoes (sound) and reflection (light), for instance, were recognized long before we had any detailed theories about these phenomena. Hesse (1966, 1988) regards such similarities as metaphorical relationships between the two domains and labels them “pre-theoretic” because they draw on personal and cultural experience. We have both material and formal analogies between sound and light, and it is significant for Hesse that the former are independent of the latter.
There are good reasons not to accept Hesse’s requirement of material analogy, construed in this narrow way. First, it is apparent that formal analogies are the starting point in many important inferences. That is certainly the case in mathematics, a field in which material analogy, in Hesse’s sense, plays no role at all. Analogical arguments based on formal analogy have also been extremely influential in physics (Steiner 1989, 1998).
In Norton’s broad sense, however, ‘material analogy’ simply refers to similarities rooted in factual knowledge of the source and target domains. With reference to this broader meaning, Hesse proposes two additional material criteria.
3.3.2 Causal condition
Hesse requires that the hypothetical analogy, the feature transferred to the target domain, be causally related to the positive analogy. In her words, the essential requirement for a good argument from analogy is “a tendency to co-occurrence”, i.e., a causal relationship. She states the requirement as follows:
The vertical relations in the model [source] are causal relations in some acceptable scientific sense, where there are no compelling a priori reasons for denying that causal relations of the same kind may hold between terms of the explanandum [target]. (1966: 87)
The causal condition rules out analogical arguments where there is no causal knowledge of the source domain. It derives support from the observation that many analogies do appear to involve a transfer of causal knowledge.
The causal condition is on the right track, but is arguably too restrictive. For example, it rules out analogical arguments in mathematics. Even if we limit attention to the empirical sciences, persuasive analogical arguments may be founded upon strong statistical correlation in the absence of any known causal connection. Consider (Example 11) Benjamin Franklin’s prediction, in 1749, that pointed metal rods would attract lightning, by analogy with the way they attracted the “electrical fluid” in the laboratory:
Electrical fluid agrees with lightning in these particulars: 1. Giving light. 2. Colour of the light. 3. Crooked direction. 4. Swift motion. 5. Being conducted by metals. 6. Crack or noise in exploding. 7. Subsisting in water or ice. 8. Rending bodies it passes through. 9. Destroying animals. 10. Melting metals. 11. Firing inflammable substances. 12. Sulphureous smell.—The electrical fluid is attracted by points.—We do not know whether this property is in lightning.—But since they agree in all the particulars wherein we can already compare them, is it not probable they agree likewise in this? Let the experiment be made. (Benjamin Franklin’s Experiments, 334)
Franklin’s hypothesis was based on a long list of properties common to the target (lightning) and source (electrical fluid in the laboratory). There was no known causal connection between the twelve “particulars” and the thirteenth property, but there was a strong correlation. Analogical arguments may be plausible even where there are no known causal relations.
3.3.3 No-essential-difference condition
Hesse’s final requirement is that the “essential properties and causal relations of the [source] have not been shown to be part of the negative analogy” (1966: 91). Hesse does not provide a definition of “essential,” but suggests that a property or relation is essential if it is “causally closely related to the known positive analogy.” For instance, an analogy with fluid flow was extremely influential in developing the theory of heat conduction. Once it was discovered that heat was not conserved, however, the analogy became unacceptable (according to Hesse) because conservation was so central to the theory of fluid flow.
This requirement, though once again on the right track, seems too restrictive. It can lead to the rejection of a good analogical argument. Consider the analogy between a two-dimensional rectangle and a three-dimensional box (Example 7). Broadening Hesse’s notion, it seems that there are many ‘essential’ differences between rectangles and boxes. This does not mean that we should reject every analogy between rectangles and boxes out of hand. The problem derives from the fact that Hesse’s condition is applied to the analogy relation independently of the use to which that relation is put. What counts as essential should vary with the analogical argument. Absent an inferential context, it is impossible to evaluate the importance or ‘essentiality’ of similarities and differences.
Despite these weaknesses, Hesse’s ‘material’ criteria constitute a significant advance in our understanding of analogical reasoning. The causal condition and the no-essential-difference condition incorporate local factors, as urged by Norton, into the assessment of analogical arguments. These conditions, singly or taken together, imply that an analogical argument can fail to generate any support for its conclusion, even when there is a non-empty positive analogy. Hesse offers no theory about the ‘degree’ of analogical support. That makes her account one of the few that is oriented towards the modal, rather than probabilistic, use of analogical arguments (§2.3).
Many people take the concept of model-theoretic isomorphism to set the standard for thinking about similarity and its role in analogical reasoning. They propose formal criteria for evaluating analogies, based on overall structural or syntactical similarity. Let us refer to theories oriented around such criteria as structuralist.
A number of leading computational models of analogy are structuralist. They are implemented in computer programs that begin with (or sometimes build) representations of the source and target domains, and then construct possible analogy mappings. Analogical inferences emerge as a consequence of identifying the ‘best mapping.’ In terms of criteria for analogical reasoning, there are two main ideas. First, the goodness of an analogical argument is based on the goodness of the associated analogy mapping. Second, the goodness of the analogy mapping is given by a metric that indicates how closely it approximates isomorphism.
The most influential structuralist theory has been Gentner’s structure-mapping theory, implemented in a program called the structure-mapping engine (SME). In its original form (Gentner 1983), the theory assesses analogies on purely structural grounds. Gentner asserts:
Analogies are about relations, rather than simple features. No matter what kind of knowledge (causal models, plans, stories, etc.), it is the structural properties (i.e., the interrelationships between the facts) that determine the content of an analogy. (Falkenhainer, Forbus, and Gentner 1989/90: 3)
In order to clarify this thesis, Gentner introduces a distinction between properties, or monadic predicates, and relations, which have multiple arguments. She further distinguishes among different orders of relations and functions, defined inductively (in terms of the order of the relata or arguments). The best mapping is determined by systematicity: the extent to which it places higher-order relations, and items that are nested in higher-order relations, in correspondence. Gentner’s Systematicity Principle states:
A predicate that belongs to a mappable system of mutually interconnecting relationships is more likely to be imported into the target than is an isolated predicate. (1983: 163)
A systematic analogy (one that places high-order relations and their components in correspondence) is better than a less systematic analogy. Hence, an analogical inference has a degree of plausibility that increases monotonically with the degree of systematicity of the associated analogy mapping. Gentner’s fundamental criterion for evaluating candidate analogies (and analogical inferences) thus depends solely upon the syntax of the given representations and not at all upon their content.
Later versions of the structure-mapping theory incorporate refinements (Forbus, Ferguson, and Gentner 1994; Forbus 2001; Forbus et al. 2007; Forbus et al. 2008; Forbus et al 2017). For example, the earliest version of the theory is vulnerable to worries about hand-coded representations of source and target domains. Gentner and her colleagues have attempted to solve this problem in later work that generates LISP representations from natural language text (see (Tunney 2008) for a different approach).
The most important challenges for the structure-mapping approach relate to the Systematicity Principle itself. Does the value of an analogy derive entirely, or even chiefly, from systematicity? There appear to be two main difficulties with this view. First: it is not always appropriate to give priority to systematic, high-level relational matches. Material criteria, and notably what Gentner refers to as “superficial feature matches,” can be extremely important in some types of analogical reasoning, such as ethnographic analogies which are based, to a considerable degree, on surface resemblances between artifacts. Second and more significantly: systematicity seems to be at best a fallible marker for good analogies rather than the essence of good analogical reasoning.
Greater systematicity is neither necessary nor sufficient for a more plausible analogical inference. It is obvious that increased systematicity is not sufficient for increased plausibility. An implausible analogy can be represented in a form that exhibits a high degree of structural parallelism. High-order relations can come cheap, as we saw with Achinstein’s “swan” example (§2.4).
More pointedly, increased systematicity is not necessary for greater plausibility. Indeed, in causal analogies, it may even weaken the inference. That is because systematicity takes no account of the type of causal relevance, positive or negative. (McKay 1993) notes that microbes have been found in frozen lakes in Antarctica; by analogy, simple life forms might exist on Mars. Freezing temperatures are preventive or counteracting causes; they are negatively relevant to the existence of life. The climate of Mars was probably more favorable to life 3.5 billion years ago than it is today, because temperatures were warmer. Yet the analogy between Antarctica and present-day Mars is more systematic than the analogy between Antarctica and ancient Mars. According to the Systematicity Principle, the analogy with Antarctica provides stronger support for life on Mars today than it does for life on ancient Mars.
The point of this example is that increased systematicity does not always increase plausibility, and reduced systematicity does not always decrease it (see Lee and Holyoak 2008). The more general point is that systematicity can be misleading, unless we take into account the nature of the relationships between various factors and the hypothetical analogy. Systematicity does not magically produce or explain the plausibility of an analogical argument. When we reason by analogy, we must determine which features of both domains are relevant and how they relate to the analogical conclusion. There is no short-cut via syntax.
Schlimm (2008) offers an entirely different critique of the structure-mapping theory from the perspective of analogical reasoning in mathematics—a domain where one might expect a formal approach such as structure mapping to perform well. Schlimm introduces a simple distinction: a domain is object-rich if the number of objects is greater than the number of relations (and properties), and relation-rich otherwise. Proponents of the structure-mapping theory typically focus on relation-rich examples (such as the analogy between the solar system and the atom). By contrast, analogies in mathematics typically involve domains with an enormous number of objects (like the real numbers), but relatively few relations and functions (addition, multiplication, less-than).
Schlimm provides an example of an analogical reasoning problem in group theory that involves a single relation in each domain. In this case, attaining maximal systematicity is trivial. The difficulty is that, compatible with maximal systematicity, there are different ways in which the objects might be placed in correspondence. The structure-mapping theory appears to yield the wrong inference. We might put the general point as follows: in object-rich domains, systematicity ceases to be a reliable guide to plausible analogical inference.
3.5.1 Connectionist models
During the past thirty-five years, cognitive scientists have conducted extensive research on analogy. Gentner’s SME is just one of many computational theories, implemented in programs that construct and use analogies. Three helpful anthologies that span this period are Helman 1988; Gentner, Holyoak, and Kokinov 2001; and Kokinov, Holyoak, and Gentner 2009.
One predominant objective of this research has been to model the cognitive processes involved in using analogies. Early models tended to be oriented towards “understanding the basic constraints that govern human analogical thinking” (Hummel and Holyoak 1997: 458). Recent connectionist models have been directed towards uncovering the psychological mechanisms that come into play when we use analogies: retrieval of a relevant source domain, analogical mapping across domains, and transfer of information and learning of new categories or schemas.
In some cases, such as the structure-mapping theory (§3.4), this research overlaps directly with the normative questions that are the focus of this entry; indeed, Gentner’s Systematicity Principle may be interpreted normatively. In other cases, we might view the projects as displacing those traditional normative questions with up-to-date, computational forms of naturalized epistemology. Two approaches are singled out here because both raise important challenges to the very idea of finding sharp answers to those questions, and both suggest that connectionist models offer a more fruitful approach to understanding analogical reasoning.
The first is the constraint-satisfaction model (also known as the multiconstraint theory), developed by Holyoak and Thagard (1989, 1995). Like Gentner, Holyoak and Thagard regard the heart of analogical reasoning as analogy mapping, and they stress the importance of systematicity, which they refer to as a structural constraint. Unlike Gentner, they acknowledge two additional types of constraints. Pragmatic constraints take into account the goals and purposes of the agent, recognizing that “the purpose will guide selection” of relevant similarities. Semantic constraints represent estimates of the degree to which people regard source and target items as being alike, rather like Hesse’s “pre-theoretic” similarities.
The novelty of the multiconstraint theory is that these structural, semantic and pragmatic constraints are implemented not as rigid rules, but rather as ‘pressures’ supporting or inhibiting potential pairwise correspondences. The theory is implemented in a connectionist program called ACME (Analogical Constraint Mapping Engine), which assigns an initial activation value to each possible pairing between elements in the source and target domains (based on semantic and pragmatic constraints), and then runs through cycles that update the activation values based on overall coherence (structural constraints). The best global analogy mapping emerges under the pressure of these constraints. Subsequent connectionist models, such as Hummel and Holyoak’s LISA program (1997, 2003), have made significant advances and hold promise for offering a more complete theory of analogical reasoning.
The second example is Hofstadter and Mitchell’s Copycat program (Hofstadter 1995; Mitchell 1993). The program is “designed to discover insightful analogies, and to do so in a psychologically realistic way” (Hofstadter 1995: 205). Copycat operates in the domain of letter-strings. The program handles the following type of problem:
Suppose the letter-string abc were changed to abd; how would you change the letter-string ijk in “the same way”?
Most people would answer ijl, since it is natural to think that abc was changed to abd by the “transformation rule”: replace the rightmost letter with its successor. Alternative answers are possible, but do not agree with most people’s sense of what counts as the natural analogy.
Hofstadter and Mitchell believe that analogy-making is in large part about the perception of novel patterns, and that such perception requires concepts with “fluid” boundaries. Genuine analogy-making involves “slippage” of concepts. The Copycat program combines a set of core concepts pertaining to letter-sequences (successor, leftmost and so forth) with probabilistic “halos” that link distinct concepts dynamically. Orderly structures emerge out of random low-level processes and the program produces plausible solutions. Copycat thus shows that analogy-making can be modeled as a process akin to perception, even if the program employs mechanisms distinct from those in human perception.
The multiconstraint theory and Copycat share the idea that analogical cognition involves cognitive processes that operate below the level of abstract reasoning. Both computational models—to the extent that they are capable of performing successful analogical reasoning—challenge the idea that a successful model of analogical reasoning must take the form of a set of quasi-logical criteria. Efforts to develop a quasi-logical theory of analogical reasoning, it might be argued, have failed. In place of faulty inference schemes such as those described earlier (§2.2, §2.4), computational models substitute procedures that can be judged on their performance rather than on traditional philosophical standards.
In response to this argument, we should recognize the value of the connectionist models while acknowledging that we still need a theory that offers normative principles for evaluating analogical arguments. In the first place, even if the construction and recognition of analogies are largely a matter of perception, this does not eliminate the need for subsequent critical evaluation of analogical inferences. Second and more importantly, we need to look not just at the construction of analogy mappings but at the ways in which individual analogical arguments are debated in fields such as mathematics, physics, philosophy and the law. These high-level debates require reasoning that bears little resemblance to the computational processes of ACME or Copycat. (Ashley’s HYPO (Ashley 1990) is one example of a non-connectionist program that focuses on this aspect of analogical reasoning.) There is, accordingly, room for both computational and traditional philosophical models of analogical reasoning.
3.5.2 Articulation model
Most prominent theories of analogy, philosophical and computational, are based on overall similarity between source and target domains—defined in terms of some favoured subset of Hesse’s horizontal relations (see §2.2). Aristotle and Mill, whose approach is echoed in textbook discussions, suggest counting similarities. Hesse’s theory (§3.3) favours “pre-theoretic” correspondences. The structure-mapping theory and its successors (§3.4) look to systematicity, i.e., to correspondences involving complex, high-level networks of relations. In each of these approaches, the problem is twofold: overall similarity is not a reliable guide to plausibility, and it fails to explain the plausibility of any analogical argument.
Bartha’s articulation model (2010) proposes a different approach, beginning not with horizontal relations, but rather with a classification of analogical arguments on the basis of the vertical relations within each domain. The fundamental idea is that a good analogical argument must satisfy two conditions:
There must be a clear connection, in the source domain, between the known similarities (the positive analogy) and the further similarity that is projected to hold in the target domain (the hypothetical analogy). This relationship determines which features of the source are critical to the analogical inference.
Potential for Generalization.
There must be reason to think that the same kind of connection could obtain in the target domain. More pointedly: there must be no critical disanalogy between the domains.
The first order of business is to make the prior association explicit. The standards of explicitness vary depending on the nature of this association (causal relation, mathematical proof, functional relationship, and so forth). The two general principles are fleshed out via a set of subordinate models that allow us to identify critical features and hence critical disanalogies.
To see how this works, consider Example 7 (Rectangles and boxes). In this analogical argument, the source domain is two-dimensional geometry: we know that of all rectangles with a fixed perimeter, the square has maximum area. The target domain is three-dimensional geometry: by analogy, we conjecture that of all boxes with a fixed surface area, the cube has maximum volume. This argument should be evaluated not by counting similarities, looking to pre-theoretic resemblances between rectangles and boxes, or constructing connectionist representations of the domains and computing a systematicity score for possible mappings. Instead, we should begin with a precise articulation of the prior association in the source domain, which amounts to a specific proof for the result about rectangles. We should then identify, relative to that proof, the critical features of the source domain: namely, the concepts and assumptions used in the proof. Finally, we should assess the potential for generalization: whether, in the three-dimensional setting, those critical features are known to lack analogues in the target domain. The articulation model is meant to reflect the conversations that can and do take place between an advocate and a critic of an analogical argument.
3.6.1 Norton’s material theory of analogy
As noted in §2.4, Norton rejects analogical inference rules. But even if we agree with Norton on this point, we might still be interested in having an account that gives us guidelines for evaluating analogical arguments. How does Norton’s approach fare on this score?
According to Norton, each analogical argument is warranted by local facts that must be investigated and justified empirically. First, there is “the fact of the analogy”: in practice, a low-level uniformity that embraces both the source and target systems. Second, there are additional factual properties of the target system which, when taken together with the uniformity, warrant the analogical inference. Consider Galileo’s famous inference (Example 12) that there are mountains on the moon (Galileo 1610). Through his newly invented telescope, Galileo observed points of light on the moon ahead of the advancing edge of sunlight. Noting that the same thing happens on earth when sunlight strikes the mountains, he concluded that there must be mountains on the moon and even provided a reasonable estimate of their height. In this example, Norton tells us, the the fact of the analogy is that shadows and other optical phenomena are generated in the same way on the earth and on the moon; the additional fact about the target is the existence of points of light ahead of the advancing edge of sunlight on the moon.
What are the implications of Norton’s material theory when it comes to evaluating analogical arguments? The fact of the analogy is a local uniformity that powers the inference. Norton’s theory works well when such a uniformity is patent or naturally inferred. It doesn’t work well when the uniformity is itself the target (rather than the driver) of the inference. That happens with explanatory analogies such as Example 5 (the Acoustical Analogy), and mathematical analogies such as Example 7 (Rectangles and Boxes). Similarly, the theory doesn’t work well when the underlying uniformity is unclear, as in Example 2 (Life on other Planets), Example 4 (Clay Pots), and many other cases. In short, if Norton’s theory is accepted, then for most analogical arguments there are no useful evaluation criteria.
3.6.2 Field-specific criteria
For those who sympathize with Norton’s skepticism about universal inductive schemes and theories of analogical reasoning, yet recognize that his approach may be too local, an appealing strategy is to move up one level. We can aim for field-specific “working logics” (Toulmin 1958; Wylie and Chapman 2016; Reiss 2015). This approach has been adopted by philosophers of archaeology, evolutionary biology and other historical sciences (Wylie and Chapman 2016; Currie 2013; Currie 2016; Currie 2018). In place of schemas, we find ‘toolkits’, i.e., lists of criteria for evaluating analogical reasoning.
For example, Currie (2016) explores in detail the use of ethnographic analogy (Example 13) between shamanastic motifs used by the contemporary San people and similar motifs in ancient rock art, found both among ancestors of the San (direct historical analogy) and in European rock art (indirect historical analogy). Analogical arguments support the hypothesis that in each of these cultures, rock art symbolizes hallucinogenic experiences. Currie examines criteria that focus on assumptions about stability of cultural traits and environment-culture relationships. Currie (2016, 2018) and Wylie (Wylie and Chapman 2016) also stress the importance of robustness reasoning that combines analogical arguments of moderate strength with other forms of evidence to yield strong conclusions.
Practice-based approaches can thus yield specific guidelines unlikely to be matched by any general theory of analogical reasoning. One caveat is worth mentioning. Field-specific criteria for ethnographic analogy are elicited against a background of decades of methodological controversy (Wylie and Chapman 2016). Critics and defenders of ethnographic analogy have appealed to general models of scientific method (e.g., hypothetico-deductive method or Bayesian confirmation). To advance the methodological debate, practice-based approaches must either make connections to these general models or explain why the lack of any such connection is unproblematic.
3.6.3 Formal analogies in physics
Close attention to analogical arguments in practice can also provide valuable challenges to general ideas about analogical inference. In an interesting discussion, Steiner (1989, 1998) suggests that many of the analogies that played a major role in early twentieth-century physics count as “Pythagorean.” The term is meant to connote mathematical mysticism: a “Pythagorean” analogy is a purely formal analogy, one founded on mathematical similarities that have no known physical basis at the time it is proposed. One example is Schrödinger’s use of analogy (Example 14) to “guess” the form of the relativistic wave equation. In Steiner’s view, Schrödinger’s reasoning relies upon manipulations and substitutions based on purely mathematical analogies. Steiner argues that the success, and even the plausibility, of such analogies “evokes, or should evoke, puzzlement” (1989: 454). Both Hesse (1966) and Bartha (2010) reject the idea that a purely formal analogy, with no physical significance, can support a plausible analogical inference in physics. Thus, Steiner’s arguments provide a serious challenge.
Bartha (2010) suggests a response: we can decompose Steiner’s examples into two or more steps, and then establish that at least one step does, in fact, have a physical basis. Fraser (forthcoming), however, offers a counterexample that supports Steiner’s position. Complex analogies between classical statistical mechanics (CSM) and quantum field theory (QFT) have played a crucial role in the development and application of renormalization group (RG) methods in both theories (Example 15). Fraser notes substantial physical disanalogies between CSM and QFT, and concludes that the reasoning is based entirely on formal analogies.
What philosophical basis can be provided for reasoning by analogy? What justification can be given for the claim that analogical arguments deliver plausible conclusions? There have been several ideas for answering this question. One natural strategy assimilates analogical reasoning to some other well-understood argument pattern, a form of deductive or inductive reasoning (§4.1, §4.2). A few philosophers have explored the possibility of a priori justification (§4.3). A pragmatic justification may be available for practical applications of analogy, notably in legal reasoning (§4.4).
Any attempt to provide a general justification for analogical reasoning faces a basic dilemma. The demands of generality require a high-level formulation of the problem and hence an abstract characterization of analogical arguments, such as schema (4). On the other hand, as noted previously, many analogical arguments that conform to schema (4) are bad arguments. So a general justification of analogical reasoning cannot provide support for all arguments that conform to (4), on pain of proving too much. Instead, it must first specify a subset of putatively ‘good’ analogical arguments, and link the general justification to this specified subset. The problem of justification is linked to the problem of characterizing good analogical arguments. This difficulty afflicts some of the strategies described in this section.
Analogical reasoning may be cast in a deductive mold. If successful, this strategy neatly solves the problem of justification. A valid deductive argument is as good as it gets.
An early version of the deductivist approach is exemplified by Aristotle’s treatment of the argument from example (§3.2), the paradeigma. On this analysis, an analogical argument between source domain S and target T begins with the assumption of positive analogy P(S) and P(T), as well as the additional information Q(S). It proceeds via the generalization ∀x(P(x) ⊃ Q(x)) to the conclusion: Q(T). Provided we can treat that intermediate generalization as an independent premise, we have a deductively valid argument. Notice, though, that the existence of the generalization renders the analogy irrelevant. We can derive Q(T) from the generalization and P(T), without any knowledge of the source domain. The literature on analogy in argumentation theory (§2.2) offers further perspectives on this type of analysis, and on the question of whether analogical arguments are properly characterized as deductive.
Some recent analyses follow Aristotle in treating analogical arguments as reliant upon extra (sometimes tacit) premises, typically drawn from background knowledge, that convert the inference into a deductively valid argument––but without making the source domain irrelevant. Davies and Russell introduce a version that relies upon what they call determination rules (Russell 1986; Davies and Russell 1987; Davies 1988). Suppose that Q and P1, …, Pm are variables, and we have background knowledge that the value of Q is determined by the values of P1, …, Pm. In the simplest case, where m = 1 and both P and Q are binary Boolean variables, this reduces to
- (8) ∀x(P(x) ⊃ Q(x)) ∨ ∀x(P(x) ⊃ ~Q(x)),
i.e., whether or not P holds determines whether or not Q holds. More generally, the form of a determination rule is
- (9) Q = F(P1, …, Pm),
i.e., Q is a function of P1, …, Pm. If we assume such a rule as part of our background knowledge, then an analogical argument with conclusion Q(T) is deductively valid. More precisely, and allowing for the case where Q is not a binary variable: if we have such a rule, and also premises stating that the source S agrees with the target T on all of the values Pi, then we may validly infer that Q(T) = Q(S).
The “determination rule” analysis provides a clear and simple justification for analogical reasoning. Note that, in contrast to the Aristotelian analysis via the generalization ∀x(P(x) ⊃ Q(x)), a determination rule does not trivialize the analogical argument. Only by combining the rule with information about the source domain can we derive the value of Q(T). To illustrate by adapting one of the examples given by Russell and Davies (Example 16), let’s suppose that the value (Q) of a used car (relative to a particular buyer) is determined by its year, make, mileage, condition, color and accident history (the variables Pi). It doesn’t matter if one or more of these factors are redundant or irrelevant. Provided two cars are indistinguishable on each of these points, they will have the same value. Knowledge of the source domain is necessary; we can’t derive the value of the second car from the determination rule alone. Weitzenfeld (1984) proposes a variant of this approach, advancing the slightly more general thesis that analogical arguments are deductive arguments with a missing (enthymematic) premise that amounts to a determination rule.
Do determination rules give us a solution to the problem of providing a justification for analogical arguments? In general: no. Analogies are commonly applied to problems such as Example 8 (morphine and meperidine), where we are not even aware of all relevant factors, let alone in possession of a determination rule. Medical researchers conduct drug tests on animals without knowing all attributes that might be relevant to the effects of the drug. Indeed, one of the main objectives of such testing is to guard against reactions unanticipated by theory. On the “determination rule” analysis, we must either limit the scope of such arguments to cases where we have a well-supported determination rule, or focus attention on formulating and justifying an appropriate determination rule. For cases such as animal testing, neither option seems realistic.
Recasting analogy as a deductive argument may help to bring out background assumptions, but it makes little headway with the problem of justification. That problem re-appears as the need to state and establish the plausibility of a determination rule, and that is at least as difficult as justifying the original analogical argument.
Some philosophers have attempted to portray, and justify, analogical reasoning in terms of some well-understood inductive argument pattern. There have been three moderately popular versions of this strategy. The first treats analogical reasoning as generalization from a single case. The second treats it as a kind of sampling argument. The third recognizes the argument from analogy as a distinctive form, but treats past successes as evidence for future success.
4.2.1 Single-case induction
Let’s reconsider Aristotle’s argument from example or paradeigma (§3.2), but this time regard the generalization as justified via induction from a single case (the source domain). Can such a simple analysis of analogical arguments succeed? In general: no.
A single instance can sometimes lead to a justified generalization. Cartwright (1992) argues that we can sometimes generalize from a single careful experiment, “where we have sufficient control of the materials and our knowledge of the requisite background assumptions is secure” (51). Cartwright thinks that we can do this, for example, in experiments with compounds that have stable “Aristotelian natures.” In a similar spirit, Quine (1969) maintains that we can have instantial confirmation when dealing with natural kinds.
Even if we accept that there are such cases, the objection to understanding all analogical arguments as single-case induction is obvious: the view is simply too restrictive. Most analogical arguments will not meet the requisite conditions. We may not know that we are dealing with a natural kind or Aristotelian nature when we make the analogical argument. We may not know which properties are essential. An insistence on the ‘single-case induction’ analysis of analogical reasoning is likely to lead to skepticism (Agassi 1964, 1988).
Interpreting the argument from analogy as single-case induction is also counter-productive in another way. The simplistic analysis does nothing to advance the search for criteria that help us to distinguish between relevant and irrelevant similarities, and hence between good and bad analogical arguments.
4.2.2 Sampling arguments
On the sampling conception of analogical arguments, acknowledged similarities between two domains are treated as statistically relevant evidence for further similarities. The simplest version of the sampling argument is due to Mill (1843/1930). An argument from analogy, he writes, is “a competition between the known points of agreement and the known points of difference.” Agreement of A and B in 9 out of 10 properties implies a probability of 0.9 that B will possess any other property of A: “we can reasonably expect resemblance in the same proportion” (367). His only restriction has to do with sample size: we must be relatively knowledgeable about both A and B. Mill saw no difficulty in using analogical reasoning to infer characteristics of newly discovered species of plants or animals, given our extensive knowledge of botany and zoology. But if the extent of unascertained properties of A and B is large, similarity in a small sample would not be a reliable guide; hence, Mill’s dismissal of Reid’s argument about life on other planets (Example 2).
The sampling argument is presented in more explicit mathematical form by Harrod (1956). The key idea is that the known properties of S (the source domain) may be considered a random sample of all S’s properties—random, that is, with respect to the attribute of also belonging to T (the target domain). If the majority of known properties that belong to S also belong to T, then we should expect most other properties of S to belong to T, for it is unlikely that we would have come to know just the common properties. In effect, Harrod proposes a binomial distribution, modeling ‘random selection’ of properties on random selection of balls from an urn.
There are grave difficulties with Harrod’s and Mill’s analyses. One obvious difficulty is the counting problem: the ‘population’ of properties is poorly defined. How are we to count similarities and differences? The ratio of shared to total known properties varies dramatically according to how we do this. A second serious difficulty is the problem of bias: we cannot justify the assumption that the sample of known features is random. In the case of the urn, the selection process is arranged so that the result of each choice is not influenced by the agent’s intentions or purposes, or by prior choices. By contrast, the presentation of an analogical argument is always partisan. Bias enters into the initial representation of similarities and differences: an advocate of the argument will highlight similarities, while a critic will play up differences. The paradigm of repeated selection from an urn seems totally inappropriate. Additional variations of the sampling approach have been developed (e.g., Russell 1988), but ultimately these versions also fail to solve either the counting problem or the problem of bias.
4.2.3 Argument from past success
Section 3.6 discussed Steiner’s view that appeal to ‘Pythagorean’ analogies in physics “evokes, or should evoke, puzzlement” (1989: 454). Liston (2000) offers a possible response: physicists are entitled to use Pythagorean analogies on the basis of induction from their past success:
[The scientist] can admit that no one knows how [Pythagorean] reasoning works and argue that the very fact that similar strategies have worked well in the past is already reason enough to continue pursuing them hoping for success in the present instance. (200)
Setting aside familiar worries about arguments from success, the real problem here is to determine what counts as a similar strategy. In essence, that amounts to isolating the features of successful Pythagorean analogies. As we have seen (§2.4), nobody has yet provided a satisfactory scheme that characterizes successful analogical arguments, let alone successful Pythagorean analogical arguments.
An a priori approach traces the validity of a pattern of analogical reasoning, or of a particular analogical argument, to some broad and fundamental principle. Three such approaches will be outlined here.
The first is due to Keynes (1921). Keynes appeals to his famous Principle of the Limitation of Independent Variety, which he articulates as follows:
- (LIV) The amount of variety in the universe is limited in such a way that there is no one object so complex that its qualities fall into an infinite number of independent groups (i.e., groups which might exist independently as well as in conjunction) (1921: 258).
Armed with this Principle and some additional assumptions, Keynes is able to show that in cases where there is no negative analogy, knowledge of the positive analogy increases the (logical) probability of the conclusion. If there is a non-trivial negative analogy, however, then the probability of the conclusion remains unchanged, as was pointed out by Hesse (1966). Those familiar with Carnap’s theory of logical probability will recognize that in setting up his framework, Keynes settled on a measure that permits no learning from experience.
Hesse offers a refinement of Keynes’s strategy, once again along Carnapian lines. In her (1974), she proposes what she calls the Clustering Postulate: the assumption that our epistemic probability function has a built-in bias towards generalization. The objections to such postulates of uniformity are well-known (see Salmon 1967), but even if we waive them, her argument fails. The main objection here—which also applies to Keynes—is that a purely syntactic axiom such as the Clustering Postulate fails to discriminate between analogical arguments that are good and those that are clearly without value (according to Hesse’s own material criteria, for example).
A different a priori strategy, proposed by Bartha (2010), limits the scope of justification to analogical arguments that satisfy tentative criteria for ‘good’ analogical reasoning. The criteria are those specified by the articulation model (§3.5). In simplified form, they require the existence of non-trivial positive analogy and no known critical disanalogy. The scope of Bartha’s argument is also limited to analogical arguments directed at establishing prima facie plausibility, rather than degree of probability.
Bartha’s argument rests on a principle of symmetry reasoning articulated by van Fraassen (1989: 236): “problems which are essentially the same must receive essentially the same solution.” A modal extension of this principle runs roughly as follows: if problems might be essentially the same, then they might have essentially the same solution. There are two modalities here. Bartha argues that satisfaction of the criteria of the articulation model is sufficient to establish the modality in the antecedent, i.e., that the source and target domains ‘might be essentially the same’ in relevant respects. He further suggests that prima facie plausibility provides a reasonable reading of the modality in the consequent, i.e., that the problems in the two domains ‘might have essentially the same solution.’ To call a hypothesis prima facie plausible is to elevate it to the point where it merits investigation, since it might be correct.
The argument is vulnerable to two sorts of concerns. First, there are questions about the interpretation of the symmetry principle. Second, there is a residual worry that this justification, like all the others, proves too much. The articulation model may be too vague or too permissive.
Arguably, the most promising available defense of analogical reasoning may be found in its application to case law (see Precedent and Analogy in Legal Reasoning). Judicial decisions are based on the verdicts and reasoning that have governed relevantly similar cases, according to the doctrine of stare decisis (Levi 1949; Llewellyn 1960; Cross and Harris 1991; Sunstein 1993). Individual decisions by a court are binding on that court and lower courts; judges are obligated to decide future cases ‘in the same way.’ That is, the reasoning applied in an individual decision, referred to as the ratio decidendi, must be applied to similar future cases (see Example 10). In practice, of course, the situation is extremely complex. No two cases are identical. The ratio must be understood in the context of the facts of the original case, and there is considerable room for debate about its generality and its applicability to future cases. If a consensus emerges that a past case was wrongly decided, later judgments will distinguish it from new cases, effectively restricting the scope of the ratio to the original case.
The practice of following precedent can be justified by two main practical considerations. First, and above all, the practice is conservative: it provides a relatively stable basis for replicable decisions. People need to be able to predict the actions of the courts and formulate plans accordingly. Stare decisis serves as a check against arbitrary judicial decisions. Second, the practice is still reasonably progressive: it allows for the gradual evolution of the law. Careful judges distinguish bad decisions; new values and a new consensus can emerge in a series of decisions over time.
In theory, then, stare decisis strikes a healthy balance between conservative and progressive social values. This justification is pragmatic. It pre-supposes a common set of social values, and links the use of analogical reasoning to optimal promotion of those values. Notice also that justification occurs at the level of the practice in general; individual analogical arguments sometimes go astray. A full examination of the nature and foundations for stare decisis is beyond the scope of this entry, but it is worth asking the question: might it be possible to generalize the justification for stare decisis? Is a parallel pragmatic justification available for analogical arguments in general?
Bartha (2010) offers a preliminary attempt to provide such a justification by shifting from social values to epistemic values. The general idea is that reasoning by analogy is especially well suited to the attainment of a common set of epistemic goals or values. In simple terms, analogical reasoning—when it conforms to certain criteria—achieves an excellent (perhaps optimal) balance between the competing demands of stability and innovation. It supports both conservative epistemic values, such as simplicity and coherence with existing belief, and progressive epistemic values, such as fruitfulness and theoretical unification (McMullin (1993) provides a classic list).
As emphasized earlier, analogical reasoning takes in a great deal more than analogical arguments. In this section, we examine two broad contexts in which analogical reasoning is important.
The first, still closely linked to analogical arguments, is the confirmation of scientific hypotheses. Confirmation is the process by which a scientific hypothesis receives inductive support on the basis of evidence (see evidence, confirmation, and Bayes’ Theorem). Confirmation may also signify the logical relationship of inductive support that obtains between a hypothesis H and a proposition E that expresses the relevant evidence. Can analogical arguments play a role, either in the process or in the logical relationship? Arguably yes (to both), but this role has to be delineated carefully, and several obstacles remain in the way of a clear account.
The second context is conceptual and theoretical development in cutting-edge scientific research. Analogies are used to suggest possible extensions of theoretical concepts and ideas. The reasoning is linked to considerations of plausibility, but there is no straightforward analysis in terms of analogical arguments.
How is analogical reasoning related to the confirmation of scientific hypotheses? The examples and philosophical discussion from earlier sections suggest that a good analogical argument can indeed provide support for a hypothesis. But there are good reasons to doubt the claim that analogies provide actual confirmation.
In the first place, there is a logical difficulty. To appreciate this, let us concentrate on confirmation as a relationship between propositions. Christensen (1999: 441) offers a helpful general characterization:
Some propositions seem to help make it rational to believe other propositions. When our current confidence in E helps make rational our current confidence in H, we say that E confirms H.
In the Bayesian model, ‘confidence’ is represented in terms of subjective probability. A Bayesian agent starts with an assignment of subjective probabilities to a class of propositions. Confirmation is understood as a three-place relation:
E confirms H relative to K ↔ Pr(H ∣ E · K) > Pr(H ∣ K).
E represents a proposition about accepted evidence, H stands for a hypothesis, K for background knowledge and Pr for the agent’s subjective probability function. To confirm H is to raise its conditional probability, relative to K. The shift from prior probability Pr(H ∣ K) to posterior probability Pr(H ∣ E · K) is referred to as conditionalization on E. The relation between these two probabilities is typically given by Bayes’ Theorem (setting aside more complex forms of conditionalization):
|(12)||Pr(H ∣ E · K) =|
For Bayesians, here is the logical difficulty: it seems that an analogical argument cannot provide confirmation. In the first place, it is not clear that we can encapsulate the information contained in an analogical argument in a single proposition, E. Second, even if we can formulate a proposition E that expresses that information, it is typically not appropriate to treat it as evidence because the information contained in E is already part of the background, K. This means that E · K is equivalent to K, and hence Pr(H ∣ E · K) = Pr(H ∣ K). According to the Bayesian definition, we don’t have confirmation. (This is a version of the problem of old evidence; see confirmation.) Third, and perhaps most important, analogical arguments are often applied to novel hypotheses H for which the prior probability Pr(H ∣ K) is not even defined. Again, the definition of confirmation in terms of Bayesian conditionalization seems inapplicable.
If analogies don’t provide inductive support via ordinary conditionalization, is there an alternative? Here we face a second difficulty, once again most easily stated within a Bayesian framework. Van Fraassen (1989) has a well-known objection to any belief-updating rule other than conditionalization. This objection applies to any rule that allows us to boost credences when there is no new evidence. The criticism, made vivid by the tale of Bayesian Peter, is that these ‘ampliative’ rules are vulnerable to a Dutch Book. Adopting any such rule would lead us to acknowledge as fair a system of bets that foreseeably leads to certain loss. Any rule of this type for analogical reasoning appears to be vulnerable to van Fraassen’s objection.
There appear to be at least three routes to avoiding these difficulties and finding a role for analogical arguments within Bayesian epistemology. First, there is what we might call minimal Bayesianism. Within the Bayesian framework, some writers (Jeffreys 1973; Salmon 1967, 1990; Shimony 1970) have argued that a ‘seriously proposed’ hypothesis must have a sufficiently high prior probability to allow it to become preferred as the result of observation. Salmon has suggested that analogical reasoning is one of the most important means of showing that a hypothesis is ‘serious’ in this sense. If analogical reasoning is directed primarily towards prior probability assignments, it can provide inductive support while remaining formally distinct from confirmation, avoiding the logical difficulties noted above. This approach is minimally Bayesian because it provides nothing more than an entry point into the Bayesian apparatus, and it only applies to novel hypotheses. An orthodox Bayesian, such as de Finetti (de Finetti and Savage 1972, de Finetti 1974), might have no problem in allowing that analogies play this role.
The second approach is liberal Bayesianism: we can change our prior probabilities in a non-rule-based fashion. Something along these lines is needed if analogical arguments are supposed to shift opinion about an already existing hypothesis without any new evidence. This is common in fields such as archaeology, as part of a strategy that Wylie refers to as “mobilizing old data as new evidence” (Wylie and Chapman 2016: 95). As Hawthorne (2012) notes, some Bayesians simply accept that both initial assignments and ongoing revision of prior probabilities (based on plausibility arguments) can be rational, but
the logic of Bayesian induction (as described here) has nothing to say about what values the prior plausibility assessments for hypotheses should have; and it places no restrictions on how they might change.
In other words, by not stating any rules for this type of probability revision, we avoid the difficulties noted by van Fraassen. This approach admits analogical reasoning into the Bayesian tent, but acknowledges a dark corner of the tent in which rationality operates without any clear rules.
Recently, a third approach has attracted interest: analogue confirmation or confirmation via analogue simulation. As described in (Dardashti et al. 2017), the idea is as follows:
Our key idea is that, in certain circumstances, predictions concerning inaccessible phenomena can be confirmed via an analogue simulation in a different system. (57)
Dardashti and his co-authors concentrate on a particular example (Example 17): ‘dumb holes’ and other analogues to gravitational black holes (Unruh 1981; Unruh 2008). Unlike real black holes, some of these analogues can be (and indeed have been) implemented and studied in the lab. Given the exact formal analogy between our models for these systems and our models of black holes, and certain important additional assumptions, Dardashti et al. make the controversial claim that observations made about the analogues provide evidence about actual black holes. For instance, the observation of phenomena analogous to Hawking radiation in the analogue systems would provide confirmation for the existence of Hawking radiation in black holes. In a second paper (Dardashti et al. 2018, Other Internet Resources), the case for confirmation is developed within a Bayesian framework.
The appeal of a clearly articulated mechanism for analogue confirmation is obvious. It would provide a tool for exploring confirmation of inaccessible phenomena not just in cosmology, but also in historical sciences such as archaeology and evolutionary biology, and in areas of medical science where ethical constraints rule out experiments on human subjects. Furthermore, as noted by Dardashti et al., analogue confirmation relies on new evidence obtained from the analogue system, and is therefore not vulnerable to the logical difficulties noted above.
Although the concept of analogue confirmation is not entirely new (think of animal testing, as in Example 8), the claims of (Dardashti et al. 2017, 2018 [Other Internet Resources]) require evaluation. One immediate difficulty for the black hole example: if we think in terms of ordinary analogical arguments, there is no positive analogy because, to put it simply, we have no basis of known similarities between a ‘dumb hole’ and a black hole. As Crowther et al. (2018, Other Internet Resources) argue, “it is not known if the particular modelling framework used in the derivation of Hawking radiation actually describes black holes in the first place.” This may not concern Dardashti et al., since they claim that analogue confirmation is distinct from ordinary analogical arguments. It may turn out that analogue confirmation is different for cases such as animal testing, where we have a basis of known similarities, and for cases where our only access to the target domain is via a theoretical model.
In §3.6, we saw that practice-based studies of analogy provide insight into the criteria for evaluating analogical arguments. Such studies also point to dynamical or programmatic roles for analogies, which appear to require evaluative frameworks that go beyond those developed for analogical arguments.
Knuttila and Loettgers (2014) examine the role of analogical reasoning in synthetic biology, an interdisciplinary field that draws on physics, chemistry, biology, engineering and computational science. The main role for analogies in this field is not the construction of individual analogical arguments but rather the development of concepts such as “noise” and “feedback loops”. Such concepts undergo constant refinement, guided by both positive and negative analogies to their analogues in engineered and physical systems. Analogical reasoning here is “transient, heterogeneous, and programmatic” (87). Negative analogies, seen as problematic obstacles for individual analogical arguments, take on a prominent and constructive role when the focus is theoretical construction and concept refinement.
Similar observations apply to analogical reasoning in its application to another cutting-edge field: emergent gravity. In this area of physics, distinct theoretical approaches portray gravity as emerging from different microstructures (Linneman and Visser 2018). “Novel and robust” features not present at the micro-level emerge in the gravitational theory. Analogies with other emergent phenomena, such as hydrodynamics and thermodynamics, are exploited to shape these proposals. As with synthetic biology, analogical reasoning is not directed primarily towards the formulation and assessment of individual arguments. Rather, its role is to develop different theoretical models of gravity.
These studies explore fluid and creative applications of analogy to shape concepts on the front lines of scientific research. An adequate analysis would certainly take us beyond the analysis of individual analogical arguments, which have been the focus of our attention. Knuttila and Loettgers (2014) are led to reject the idea that the individual analogical argument is the “primary unit” in analogical reasoning, but this is a debatable conclusion. Linneman and Visser (2018), for instance, explicitly affirm the importance of assessing the case for different gravitational models through “exemplary analogical arguments”:
We have taken up the challenge of making explicit arguments in favour of an emergent gravity paradigm… That arguments can only be plausibility arguments at the heuristic level does not mean that they are immune to scrutiny and critical assessment tout court. The philosopher of physics’ job in the process of discovery of quantum gravity… should amount to providing exactly this kind of assessments. (Linneman and Visser 2018: 12)
Accordingly, Linneman and Visser formulate explicit analogical arguments for each model of emergent gravity, and assess them using familiar criteria for evaluating individual analogical arguments. Arguably, even the most ambitious heuristic objectives still depend upon considerations of plausibility that benefit by being expressed, and examined, in terms of analogical arguments.
- Achinstein, P., 1964, “Models, Analogies and Theories,” Philosophy of Science, 31: 328–349.
- Agassi, J., 1964, “Discussion: Analogies as Generalizations,” Philosophy of Science, 31: 351–356.
- –––, 1988, “Analogies Hard and Soft,” in D.H. Helman (ed.) 1988, 401–19.
- Aristotle, 1984, The Complete Works of Aristotle, J. Barnes (ed.), Princeton: Princeton University Press.
- Ashley, K.D., 1990, Modeling Legal Argument: Reasoning with Cases and Hypotheticals, Cambridge: MIT Press/Bradford Books.
- Bailer-Jones, D., 2002, “Models, Metaphors and Analogies,” in Blackwell Guide to the Philosophy of Science, P. Machamer and M. Silberstein (eds.), 108–127, Cambridge: Blackwell.
- Bartha, P., 2010, By Parallel Reasoning: The Construction and Evaluation of Analogical Arguments, New York: Oxford University Press.
- Bermejo-Luque, L., 2012, “A unitary schema for arguments by analogy,” Informal Logic, 11(3): 161–172.
- Biela, A., 1991, Analogy in Science, Frankfurt: Peter Lang.
- Black, M., 1962, Models and Metaphors, Ithaca: Cornell University Press.
- Campbell, N.R., 1920, Physics: The Elements, Cambridge: Cambridge University Press.
- –––, 1957, Foundations of Science, New York: Dover.
- Carbonell, J.G., 1983, “Learning by Analogy: Formulating and Generalizing Plans from Past Experience,” in Machine Learning: An Artificial Intelligence Approach, vol. 1, R. Michalski, J. Carbonell and T. Mitchell (eds.), 137–162, Palo Alto: Tioga.
- –––, 1986, “Derivational Analogy: A Theory of Reconstructive Problem Solving and Expertise Acquisition,” in Machine Learning: An Artificial Intelligence Approach, vol. 2, J. Carbonell, R. Michalski, and T. Mitchell (eds.), 371–392, Los Altos: Morgan Kaufmann.
- Carnap, R., 1980, “A Basic System of Inductive Logic Part II,” in Studies in Inductive Logic and Probability, vol. 2, R.C. Jeffrey (ed.), 7–155, Berkeley: University of California Press.
- Cartwright, N., 1992, “Aristotelian Natures and the Modern Experimental Method,” in Inference, Explanation, and Other Frustrations, J. Earman (ed.), Berkeley: University of California Press.
- Christensen, D., 1999, “Measuring Confirmation,” Journal of Philosophy 96(9): 437–61.
- Cohen, L. J., 1980, “Some Historical Remarks on the Baconian Conception of Probability,” Journal of the History of Ideas 41: 219–231.
- Copi, I., 1961, Introduction to Logic, 2nd edition, New York: Macmillan.
- Copi, I. and C. Cohen, 2005, Introduction to Logic, 12th edition, Upper Saddle River, New Jersey: Prentice-Hall.
- Cross, R. and J.W. Harris, 1991, Precedent in English Law, 4th ed., Oxford: Clarendon Press.
- Currie, A., 2013, “Convergence as Evidence,” British Journal for the Philosophy of Science, 64: 763–86.
- –––, 2016, “Ethnographic analogy, the comparative method, and archaeological special pleading,” Studies in History and Philosophy of Science, 55: 84–94.
- –––, 2018, Rock, Bone and Ruin, Cambridge, MA: MIT Press.
- Dardashti, R., K. Thébault, and E. Winsberg, 2017, “Confirmation via Analogue Simulation: What Dumb Holes Could Tell Us about Gravity,” British Journal for the Philosophy of Science, 68: 55–89.
- Darwin, C., 1903, More Letters of Charles Darwin, vol. I, F. Darwin (ed.), New York: D. Appleton.
- Davies, T.R., 1988, “Determination, Uniformity, and Relevance: Normative Criteria for Generalization and Reasoning by Analogy,” in D.H. Helman (ed.) 1988, 227–50.
- Davies, T.R. and S. Russell, 1987, “A Logical Approach to Reasoning by Analogy,” in IJCAI 87: Proceedings of the Tenth International Joint Conference on Artificial Intelligence, J. McDermott (ed.), 264–70, Los Altos, CA: Morgan Kaufmann.
- De Finetti, B., 1974, Theory of Probability, vols. 1 and 2, trans. A. Machí and A. Smith, New York: Wiley.
- De Finetti, B. and L.J. Savage, 1972, “How to Choose the Initial Probabilities,” in B. de Finetti, Probability, Induction and Statistics, 143–146, New York: Wiley.
- Descartes, R., 1637/1954, The Geometry of René Descartes, trans. D.E. Smith and M.L. Latham, New York: Dover.
- Douven, I. and T. Williamson, 2006, “Generalizing the Lottery Paradox,” British Journal for the Philosophy of Science, 57: 755–779.
- Eliasmith, C. and P. Thagard, 2001, “Integrating structure and meaning: a distributed model of analogical mapping,” Cognitive Science 25: 245–286.
- Evans, T.G., 1968, “A Program for the Solution of Geometric-Analogy Intelligence-Test Questions,” in M.L. Minsky (ed.), 271–353, Semantic Information Processing, Cambridge: MIT Press.
- Falkenhainer, B., K. Forbus, and D. Gentner, 1989/90, “The Structure-Mapping Engine: Algorithm and Examples,” Artificial Intelligence 41: 2–63.
- Forbus, K, 2001, “Exploring Analogy in the Large,” in D. Gentner, K. Holyoak, and B. Kokinov (eds.) 2001, 23–58.
- Forbus, K., R. Ferguson, and D. Gentner, 1994, “Incremental Structure-mapping,” in Proceedings of the Sixteenth Annual Conference of the Cognitive Science Society, A. Ram and K. Eiselt (eds.), 313–18, Hillsdale, NJ: Lawrence Erlbaum.
- Forbus, K., C. Riesbeck, L. Birnbaum, K. Livingston, A. Sharma, and L. Ureel, 2007, “A prototype system that learns by reading simplified texts,” in AAAI Spring Symposium on Machine Reading, Stanford University, California.
- Forbus, K., J. Usher, A. Lovett, K. Lockwood, and J. Wetzel, 2008, “Cogsketch: Open domain sketch understanding for cognitive science research and for education,” in Proceedings of the Fifth Eurographics Workshop on Sketch-Based Interfaces and Modeling, Annecy, France.
- Forbus, K., R. Ferguson, A. Lovett, and D. Gentner, 2017, “Extending SME to Handle Large-Scale Cognitive Modeling,” Cognitive Science, 41(5): 1152–1201.
- Franklin, B., 1941, Benjamin Franklin’s Experiments, I.B. Cohen (ed.), Cambridge: Harvard University Press.
- Fraser, D., forthcoming, “The development of renormalization group methods for particle physics: Formal analogies between classical statistical mechanics and quantum field theory,” Synthese, first online 29 June 2018. doi:10.1007/s11229-018-1862-0
- Galilei, G., 1610 , The Starry Messenger, S. Drake (trans.) in Telescopes, Tides and Tactics, Chicago: University of Chicago Press.
- Gentner, D., 1983, “Structure-Mapping: A Theoretical Framework for Analogy,” Cognitive Science 7: 155–70.
- Gentner, D., K. Holyoak, and B. Kokinov (eds.), 2001, The Analogical Mind: Perspectives from Cognitive Science, Cambridge: MIT Press.
- Gildenhuys, P., 2004, “Darwin, Herschel, and the role of analogy in Darwin’s Origin,” Studies in the History and Philosophy of Biological and Biomedical Sciences, 35: 593–611.
- Gould, R.A. and P.J. Watson, 1982, “A Dialogue on the Meaning and Use of Analogy in Ethnoarchaeological Reasoning,” Journal of Anthropological Archaeology 1: 355–381.
- Govier, T., 1999, The Philosophy of Argument, Newport News, VA: Vale Press.
- Guarini, M., 2004, “A Defence of Non-deductive Reconstructions of Analogical Arguments,” Informal Logic, 24(2): 153–168.
- Hadamard, J., 1949, An Essay on the Psychology of Invention in the Mathematical Field, Princeton: Princeton University Press.
- Hájek, A., 2018, “Creating heuristics for philosophical creativity,” in Creativity and Philosophy, B. Gaut and M. Kieran (eds.), New York: Routledge, 292–312.
- Halpern, J. Y., 2003, Reasoning About Uncertainty, Cambridge, MA: MIT Press.
- Harrod, R.F., 1956, Foundations of Inductive Logic, London: Macmillan.
- Hawthorne, J., 2012, “Inductive Logic”, The Stanford Encyclopedia of Philosophy (Winter 2012 edition), Edward N. Zalta (ed.), URL = <https://plato.stanford.edu/archives/win2012/entries/logic-inductive/>.
- Helman, D.H. (ed.), 1988, Analogical Reasoning: perspectives of artificial intelligence, cognitive science, and philosophy, Dordrecht: Kluwer Academic Publishers.
- Hempel, C.G., 1965, “Aspects of Scientific Explanation,” in Aspects of Scientific Explanation and Other Essays in the Philosophy of Science, 331–496, New York: Free Press.
- Hesse, M.B., 1964, “Analogy and Confirmation Theory,” Philosophy of Science, 31: 319–327.
- –––, 1966, Models and Analogies in Science, Notre Dame: University of Notre Dame Press.
- –––, 1973, “Logic of discovery in Maxwell’s electromagnetic theory,” in Foundations of scientific method: the nineteenth century, R. Giere and R. Westfall (eds.), 86–114, Bloomington: University of Indiana Press.
- –––, 1974, The Structure of Scientific Inference, Berkeley: University of California Press.
- –––, 1988, “Theories, Family Resemblances and Analogy,” in D.H. Helman (ed.) 1988, 317–40.
- Hofstadter, D., 1995, Fluid Concepts and Creative Analogies, New York: BasicBooks (Harper Collins).
- –––, 2001, “Epilogue: Analogy as the Core of Cognition,” in Gentner, Holyoak, and Kokinov (eds.) 2001, 499–538.
- Hofstadter, D., and E. Sander, 2013, Surfaces and Essences: Analogy as the Fuel and Fire of Thinking, New York: Basic Books.
- Holyoak, K. and P. Thagard, 1989, “Analogical Mapping by Constraint Satisfaction,” Cognitive Science, 13: 295–355.
- –––, 1995, Mental Leaps: Analogy in Creative Thought, Cambridge: MIT Press.
- Huber, F., 2009, “Belief and Degrees of Belief,” in F. Huber and C. Schmidt-Petri (eds.) 2009, 1–33.
- Huber, F. and C. Schmidt-Petri, 2009, Degrees of Belief, Springer, 2009,
- Hume, D. 1779/1947, Dialogues Concerning Natural Religion, Indianapolis: Bobbs-Merrill.
- Hummel, J. and K. Holyoak, 1997, “Distributed Representations of Structure: A Theory of Analogical Access and Mapping,” Psychological Review 104(3): 427–466.
- –––, 2003, “A symbolic-connectionist theory of relational inference and generalization,” Psychological Review 110: 220–264.
- Hunter, D. and P. Whitten (eds.), 1976, Encyclopedia of Anthropology, New York: Harper & Row.
- Huygens, C., 1690/1962, Treatise on Light, trans. S. Thompson, New York: Dover.
- Indurkhya, B., 1992, Metaphor and Cognition, Dordrecht: Kluwer Academic Publishers.
- Jeffreys, H., 1973, Scientific Inference, 3rd ed., Cambridge: Cambridge University Press.
- Keynes, J.M., 1921, A Treatise on Probability, London: Macmillan.
- Knuuttila, T., and A. Loettgers, 2014, “Varieties of noise: Analogical reasoning in synthetic biology,” Studies in History and Philosophy of Science, 48: 76–88.
- Kokinov, B., K. Holyoak, and D. Gentner (eds.), 2009, New Frontiers in Analogy Research: Proceedings of the Second International Conference on Analogy ANALOGY-2009, Sofia: New Bulgarian University Press.
- Kraus, M., 2015, “Arguments by Analogy (and What We Can Learn about Them from Aristotle),” in Reflections on Theoretical Issues in Argumentation Theory, F.H. van Eemeren and B. Garssen (eds.), Cham: Springer, 171–182. doi: 10.1007/978-3-319-21103-9_13
- Kroes, P., 1989, “Structural analogies between physical systems,” British Journal for the Philosophy of Science, 40: 145–54.
- Kuhn, T.S., 1996, The Structure of Scientific Revolutions, 3rd edition, Chicago: University of Chicago Press.
- Kuipers, T., 1988, “Inductive Analogy by Similarity and Proximity,” in D.H. Helman (ed.) 1988, 299–313.
- Lakoff, G. and M. Johnson, 1980, Metaphors We Live By, Chicago: University of Chicago Press.
- Leatherdale, W.H., 1974, The Role of Analogy, Model, and Metaphor in Science, Amsterdam: North-Holland Publishing.
- Lee, H.S. and Holyoak, K.J., 2008, “Absence Makes the Thought Grow Stronger: Reducing Structural Overlap Can Increase Inductive Strength,” in Proceedings of the Thirtieth Annual Conference of the Cognitive Science Society, V. Sloutsky, B. Love, and K. McRae (eds.), 297–302, Austin: Cognitive Science Society.
- Lembeck, F., 1989, Scientific Alternatives to Animal Experiments, Chichester: Ellis Horwood.
- Levi, E., 1949, An Introduction to Legal Reasoning, Chicago: University of Chicago Press.
- Linnemann, N., and M. Visser, 2018, “Hints towards the emergent nature of gravity,” Studies in History and Philosophy of Modern Physics, 30: 1–13.
- Liston, M., 2000, “Critical Discussion of Mark Steiner’s The Applicability of Mathematics as a Philosophical Problem,” Philosophia Mathematica, 3(8): 190–207.
- Llewellyn, K., 1960, The Bramble Bush: On Our Law and its Study, New York: Oceana.
- Lloyd, G.E.R., 1966, Polarity and Analogy, Cambridge: Cambridge University Press.
- Macagno, F., D. Walton and C. Tindale, 2017, “Analogical Arguments: Inferential Structures and Defeasibility Conditions,” Argumentation, 31: 221–243.
- Maher, P., 2000, “Probabilities for Two Properties,” Erkenntnis, 52: 63–91.
- Maier, C.L., 1981, The Role of Spectroscopy in the Acceptance of the Internally Structured Atom 1860–1920, New York: Arno Press.
- Maxwell, J.C., 1890, Scientific Papers of James Clerk Maxwell, Vol. I, W.D. Niven (ed.), Cambridge: Cambridge University Press.
- McKay, C.P., 1993, “Did Mars once have Martians?” Astronomy, 21(9): 26–33.
- McMullin, Ernan, 1993, “Rationality and Paradigm Change in Science,” in World Changes: Thomas Kuhn and the Nature of Science, P. Horwich (ed.), 55–78, Cambridge: MIT Press.
- Mill, J.S., 1843/1930, A System of Logic, London: Longmans-Green.
- Mitchell, M., 1993, Analogy-Making as Perception, Cambridge: Bradford Books/MIT Press.
- Moore, B. N. and R. Parker, 1998, Critical Thinking, 5th ed., Mountain View, CA: Mayfield.
- Nersessian, N., 2002, “Maxwell and ‘the Method of Physical Analogy’: Model-Based Reasoning, Generic Abstraction, and Conceptual Change,” in Reading Natural Philosophy, D. Malament (ed.), Chicago: Open Court.
- –––, 2009, “Conceptual Change: Creativity, Cognition, and Culture,” in Models of Discovery and Creativity, J. Meheus and T. Nickles (eds.), Dordrecht: Springer 127–166.
- Niiniluoto, I., 1988, “Analogy and Similarity in Scientific Reasoning,” in D.H. Helman (ed.) 1988, 271–98.
- Norton, J., 2010, “There Are No Universal Rules for Induction,” Philosophy of Science, 77: 765–777.
- Ortony, A. (ed.), 1979, Metaphor and Thought, Cambridge: Cambridge University Press.
- Oppenheimer, R., 1955, “Analogy in Science,” American Psychologist 11(3): 127–135.
- Pietarinen, J., 1972, Lawlikeness, Analogy and Inductive Logic, Amsterdam: North-Holland.
- Poincaré, H., 1952a, Science and Hypothesis, trans. W.J. Greenstreet, New York: Dover.
- –––, 1952b, Science and Method, trans. F. Maitland, New York: Dover.
- Polya, G., 1954, Mathematics and Plausible Reasoning, 2nd ed. 1968, two vols., Princeton: Princeton University Press.
- Prieditis, A. (ed.), 1988, Analogica, London: Pitman.
- Priestley, J., 1769, 1775/1966, The History and Present State of Electricity, Vols. I and II, New York: Johnson. Reprint.
- Quine, W.V., 1969, “Natural Kinds,” in Ontological Relativity and Other Essays, 114–138, New York: Columbia University Press.
- Quine, W.V. and J.S. Ullian, 1970, The Web of Belief, New York: Random House.
- Radin, M., 1933, “Case Law and Stare Decisis,” Columbia Law Review 33 (February), 199.
- Reid, T., 1785/1895, Essays on the Intellectual Powers of Man. The Works of Thomas Reid, vol. 3, 8th ed., Sir William Hamilton (ed.), Edinburgh: James Thin.
- Reiss, J., 2015, “A Pragmatist Theory of Evidence,” Philosophy of Science, 82: 341–62.
- Reynolds, A.K. and L.O. Randall, 1975, Morphine and Related Drugs, Toronto: University of Toronto Press.
- Richards, R.A., 1997, “Darwin and the inefficacy of artificial selection,” Studies in History and Philosophy of Science, 28(1): 75–97.
- Robinson, D.S., 1930, The Principles of Reasoning, 2nd ed., New York: D. Appleton.
- Romeijn, J.W., 2006, “Analogical Predictions for Explicit Similarity,” Erkenntnis, 64(2): 253–80.
- Russell, S., 1986, Analogical and Inductive Reasoning, Ph.D. thesis, Department of Computer Science, Stanford University, Stanford, CA.
- –––, 1988, “Analogy by Similarity,” in D.H. Helman (ed.) 1988, 251–269.
- Salmon, W., 1967, The Foundations of Scientific Inference, Pittsburgh: University of Pittsburgh Press.
- –––, 1990, “Rationality and Objectivity in Science, or Tom Kuhn Meets Tom Bayes,” in Scientific Theories (Minnesota Studies in the Philosophy of Science: Volume 14), C. Wade Savage (ed.), Minneapolis: University of Minnesota Press, 175–204.
- Sanders, K., 1991, “Representing and Reasoning about Open-Textured Predicates,” in Proceedings of the Third International Conference on Artificial Intelligence and Law, New York: Association of Computing Machinery, 137–144.
- Schlimm, D., 2008, “Two Ways of Analogy: Extending the Study of Analogies to Mathematical Domains,” Philosophy of Science, 75: 178–200.
- Shelley, C., 1999, “Multiple Analogies in Archaeology,” Philosophy of Science, 66: 579–605.
- –––, 2003, Multiple Analogies in Science and Philosophy, Amsterdam: John Benjamins.
- Shimony, A., 1970, “Scientific Inference,” in The Nature and Function of Scientific Theories, R. Colodny (ed.), Pittsburgh: University of Pittsburgh Press, 79–172.
- Snyder, L., 2006, Reforming Philosophy: A Victorian Debate on Science and Society, Chicago: University of Chicago Press.
- Spohn, W., 2009, “A Survey of Ranking Theory,” in F. Huber and C. Schmidt-Petri (eds.) 2009, 185-228.
- –––, 2012, The Laws of Belief: Ranking Theory and its Philosophical Applications, Oxford: Oxford University Press.
- Stebbing, L.S., 1933, A Modern Introduction to Logic, 2nd edition, London: Methuen.
- Steiner, M., 1989, “The Application of Mathematics to Natural Science,” Journal of Philosophy, 86: 449–480.
- –––, 1998, The Applicability of Mathematics as a Philosophical Problem, Cambridge, MA: Harvard University Press.
- Stepan, N., 1996, “Race and Gender: The Role of Analogy in Science,” in Feminism and Science, E.G. Keller and H. Longino (eds.), Oxford: Oxford University Press, 121–136.
- Sterrett, S., 2006, “Models of Machines and Models of Phenomena,” International Studies in the Philosophy of Science, 20(March): 69–80.
- Sunstein, C., 1993, “On Analogical Reasoning,” Harvard Law Review, 106: 741–791.
- Thagard, P., 1989, “Explanatory Coherence,” Behavioral and Brain Science, 12: 435–502.
- Timoshenko, S. and J. Goodier, 1970, Theory of Elasticity, 3rd edition, New York: McGraw-Hill.
- Toulmin, S., 1958, The Uses of Argument, Cambridge: Cambridge University Press.
- Tunney, P., 2008, “The Latent Relation Mapping Engine: Algorithm and Experiments,” Journal of Artificial Intelligence Research, 33: 615–55.
- Unruh, W., 1981, “Experimental Black-Hole Evaporation?,” Physical Review Letters, 46: 1351–3.
- –––, 2008, “Dumb Holes: Analogues for Black Holes,” Philosophical Transactions of the Royal Society A, 366: 2905–13.
- Van Fraassen, Bas, 1980, The Scientific Image, Oxford: Clarendon Press.
- –––, 1984, “Belief and the Will,” Journal of Philosophy, 81: 235–256.
- –––, 1989, Laws and Symmetry, Oxford: Clarendon Press.
- –––, 1995, “Belief and the Problem of Ulysses and the Sirens,” Philosophical Studies, 77: 7–37.
- Waller, B., 2001, “Classifying and analyzing analogies,” Informal Logic, 21(3): 199–218.
- Walton, D. and C. Hyra, 2018, “Analogical Arguments in Persuasive and Deliberative Contexts,” Informal Logic, 38(2): 213–261.
- Weitzenfeld, J.S., 1984, “Valid Reasoning by Analogy,” Philosophy of Science, 51: 137–49.
- Woods, J., A. Irvine, and D. Walton, 2004, Argument: Critical Thinking, Logic and the Fallacies, 2nd edition, Toronto: Prentice-Hall.
- Wylie, A., 1982, “An Analogy by Any Other Name Is Just as Analogical,” Journal of Anthropological Archaeology, 1: 382–401.
- –––, 1985, “The Reaction Against Analogy,” Advances in Archaeological Method and Theory, 8: 63–111.
- Wylie, A., and R. Chapman, 2016, Evidential Reasoning in Archaeology, Bloomsbury Academic.
How to cite this entry. Preview the PDF version of this entry at the Friends of the SEP Society. Look up this entry topic at the Indiana Philosophy Ontology Project (InPhO). Enhanced bibliography for this entry at PhilPapers, with links to its database.
- Crowther, K., N. Linnemann, and C. Wüthrich, 2018, “What we cannot learn from analogue experiments,” online at arXiv.org.
- Dardashti, R., S. Hartmann, K. Thébault, and E. Winsberg, 2018, “Hawking Radiation and Analogue Experiments: A Bayesian Analysis,” online at PhilSci Archive.
- Norton, J., 2018. “Analogy”, unpublished draft, University of Pittsburgh.
- Resources for Research on Analogy: a Multi-Disciplinary Guide (University of Windsor)
- UCLA Reasoning Lab (UCLA)
- Dedre Gentner’s publications (Northwestern University)
- The Center for Research on Concepts and Cognition (Indiana University)
